FEATURES
The 24V INTERFACE KIT is used to connect a SINGLE ZONE Ductless System to a 3rd party single stage conventional thermostat (sold separately).
4 Fan control speeds
• Auto
• High
• Med
• Low
• Single Zone Applications only
• One 24V INTERFACE KIT per System
• Keeps the Inverter Compressor operating as a Variable Speed System
• Rated for outdoor and indoor mounting
• Dry mode contact for active dehumidification control
• Remote ON/OFF contact
• Auxiliary Heat control through the thermostat
• Diagnostic code display LEDs
INCLUDES

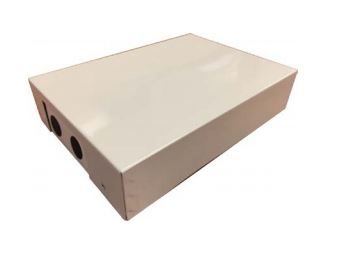

• 24V INTERFACE Control Box• Installation manual
• Wall anchors
• Screws M4X20mm
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.2287 | Exterior Dimensions (D) (inches) | 6.130000 | Exterior Dimensions (W) (inches) | 4.130000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 0.500000 |
