Thermostatic Expansion Valve Kit, R22, 4 Ton

FEATURES

All valves in the R-410A or R-22 TXV kits are bi-flow, balanced port, non-adjustable and hard shutoff design. The hard shutoff design has no bleed port and allows no bleed-through after system shutdown.

APPLICATIONS

• The R-410A or R-22 TXV can be mounted in any position and feed in any direction.
• NOTE: Always mount as close to the indoor coil as possible.
• NOTE: Mounting the TXV in the upright position is preferred. Mounting TXV upside down may increase the chance that debris could deposit on the internal check valve and hold the check valve open during cooling and act as a bleed port.

FEATURES & BENEFITS

• Refrigerant: R22
• Capacity: 4 Ton

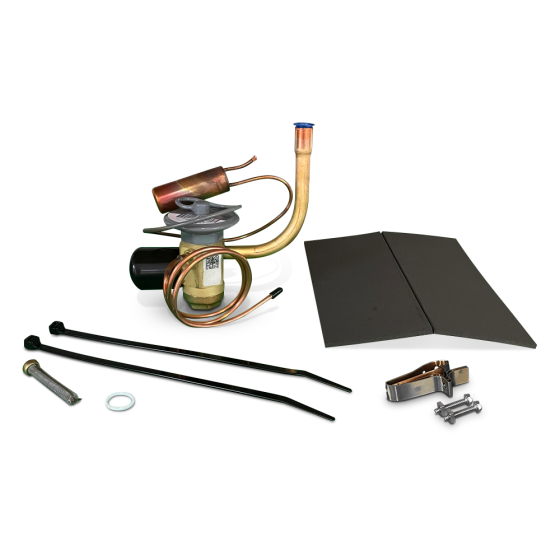

INCLUDES

• Thermostatic Expansion Valve Assembly
• Drop-In Strainer
• Neoprene Tape (2)
• Washer
• Copper Bulb Strap
