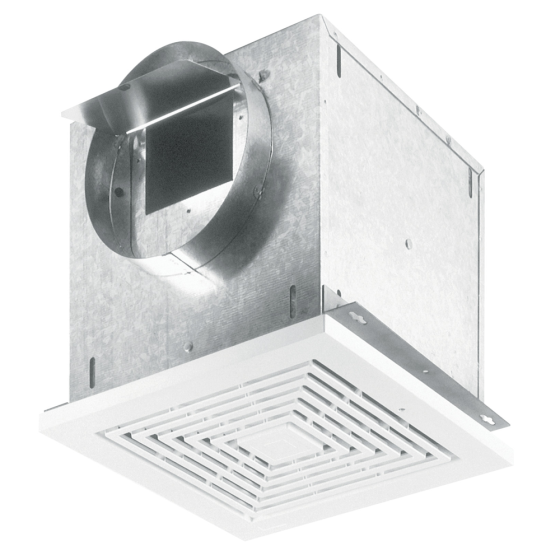

The Broan® Losone Select™ Series L100 High-Capacity Ventilation Fan is an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high-capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
FEATURES & BENEFITS
• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation • Duct horizontally, vertically or Inline with separate adapter • Quiet automatic backdraft dampers • Rugged galvanized steel housing design • AMCA licensed for air and sound performance • CFM (@ 0.125 SP): 109 • Duct Size: 6" Round • ENERGY STAR® certified: No • Grille Length: 14 • Grille Width: 14 • Housing Dimensions: 12-1/4" X 12-1/4" X 11-3/4" • Sound Level (Sones): 0.9 • UL Listed: Yes • Grille Finish: White • Humidity Sensing: No • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: Yes • Room Side Installation: No • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No • Rated Amps: 1.1 • Voltage: 120 • Can Be Used to Comply with Title 24: No • Manufacturer Warranty: 1 Year • High Efficiency Luminaire: No
GRILLE: • Conceals interior • Low profile styling blends with any decor • White polymeric (“MG” models - metal, finished with white painted enamel)
BLOWER: • Low RPM for quiet operation • Resilient anti-vibration mounts • Dynamically-balanced, polymeric, centrifugal blower wheel for quiet, efficient performance • Permanently lubricated, thermally protected motor • Plug-in motor rated at 120 VAC • Designed for continuous operation
HOUSING: • Rugged, 20 gauge galvanized • 6” round duct connector • 1/2” acoustic insulation inside • May be installed in ceiling or wall (size permitting) • 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements • Automatic backdraft damper located within duct connector • Factory-shipped in horizontal discharge position – easily converted to vertical discharge • May be installed as an Inline ventilator with addition of accessory kit Model 961L (see “Accessories”)
ACCESSORIES (purchase all separately): • Model 57V (Ivory) / 57W (White) Electronic Variable Speed Control • Model 59V (Ivory) / 59W (White) 60-Minute Time Control • Model 61V (Ivory) / 61W (White) 15-Minute Time Control • Model 71V (Ivory) / 71W (White) 12-Hour Time Control • Electronic Variable Speed Controls – Model 72V (120 VAC) • Model 961L Inline Adapter Plate • Model RD1 Radiation Damper • Model 80L Electronic Speed Control (Internal)
