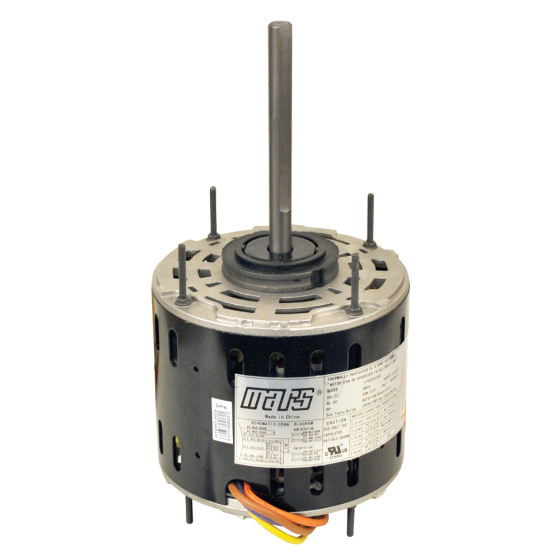

Mars® Multi- HP Direct Drive Blower Motor 1/5-3/4 HP, 1075 RPM, 208/230Vac, 4.2A, 10/20µF/370Vac, 4 Speed, 40°C (PSC)
Item
10467
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/5-3/4
• RPM: 1075
• Number of Speeds: 4
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 4.2
• Capacitor: 10/20µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 5.6
DIRECT REPLACEMENT FOR
• Century/A.O. Smith - FD6001
• US Motors/Emerson - 5471
• Fasco - D2833
• Genteq/Regal - 3467
• Marathon - X075
• Nordyne/ Partners Choice - 01-0702
• ROTOM - R43603
• Carrier/Totaline RCD - P257-E5471
• Wagner - WG840467
• York/Source 4 - S1-FHM3467
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/5 - 3/4 | Motor Type | PSC | Mounting Type | Belly Band | Number of Speeds | 4 | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 5.6 |
| Electrical | |
|---|---|
| Amps | 4.2 | FLA | 4.2 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 20.000000 |
