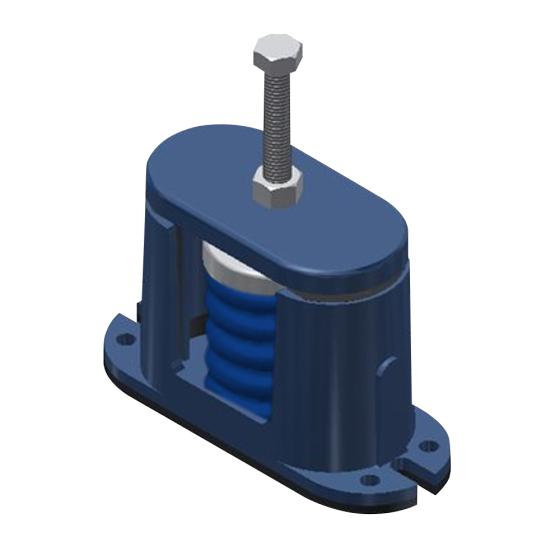

Mason Industries Single Spring Isolation Mount, 3/8", 1.6" Deflection, 45lbs.
Item
CA-45
APPLICATIONS
The TYPE “C” Spring Mount provides a packaged solution to troublesome vibration problems. Since the static deflection of the spring element is much greater than that provided by most rubber materials, these units will perform where it is necessary to establish low natural frequencies or to use a mounting that is more yielding than the supporting floor. Type “C” mountings are specifically designed for noise and vibration free application in critical areas on light concrete or wooden floors.
FEATURES & BENEFITS
• Rated Capacity (lbs): 45
• Rated Deflection (in): 1.6
• Spring Constant (lbs/in): 28
• Adjustment Bolt Size: 3/8" x 4"
• Spring Color: Blue
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 3.000000 |
