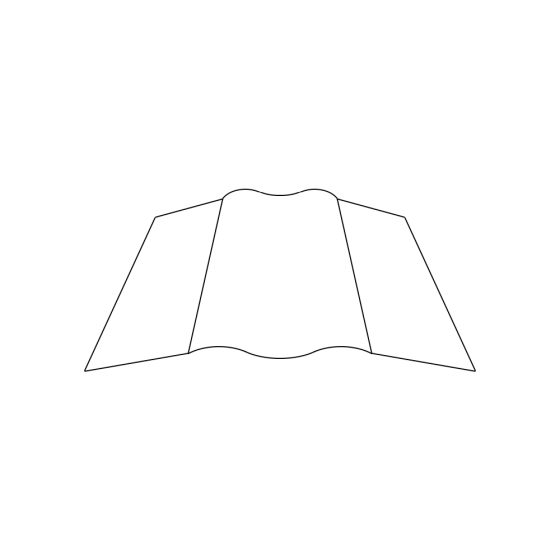

All air duct installations for heating, cooling or ventilation are attached to mechanical equipment containing a fan or blower. Vibrations, noises, and rattles resulting from operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system. To isolate the vibration and noises to the source, an airtight flexible joint, consisting of a fabric which is attached to sheet metal on both sides, must be inserted between the equipment and the ductwork. This vibration isolator is called a "Flexible Duct Connector".
FEATURES & BENEFITS
• UL Classified Listing # R4462 • Continuous Temp. Range: -40°F. to 180°F. • Color: Black • Commercial Grade Weight: 22 oz. • Residential Grade Weight: 17 oz. • Abrasion Resistance: 15,000 cycles (Abrasion resistance as per Federal Test Standard 191 Method #5306 using CS 17 wheel with 250 Gram load.) • Leakage Resistance: 350 (Leakage resistance as per Federal Test Standard 191 Method #5512. Results in P.S.I.(To convert inches of water multiply P.S.I. x 27.176.). • Tear Strength: 100 lbs. / 100 lbs. (Tear strength in tongue pounds as per Federal Test Standard 191 Method #5134.1 (warp/fill). • Tensile Strength: 240 lbs. / 220 lbs. (Tensile strength in grab pounds as per Federal Test Standard 191 Method #5100 (warp/fill). • Base Fabric Woven Nylon/Polyester Blend • Coating Vinyl • Excellent water resistance • Excellent tear strength • Excellent all-purpose fabric • Unaffected by mildew • Standard Excelon is not LA city approved. Use Excelon-LA when LA city approval is necessary.(See Specification Form Excelon-LA - 203)
