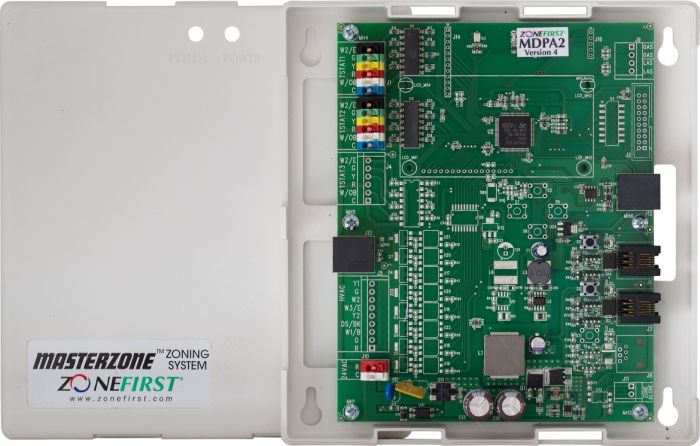

ZoneFirst 2-Zone Adder Panel for MDP3 Control Panel
Item
MDPA2
FEATURES
The MDPA2 Ver. 04 is used with the MDP3 Ver. 04 or MDPK when zones need to be added. Each MDPA2 Ver. 04 adds 2 zones and can zone up to 103 zones max with the MDP3 Ver. 04 or MDPK.
The MDPA2 is an extension of the MDP3 zone functions. The MDPA2 must use the same thermostat wiring configuration as the zones on the MDP3. The MDPA2 is not used as a stand-alone panel.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 6 | Exterior Dimensions (D) (inches) | 1.380000 | Exterior Dimensions (W) (inches) | 7.250000 | Exterior Dimensions (H) (inches) | 7.630000 | Shipping Weight (lbs) | 6.000000 |
