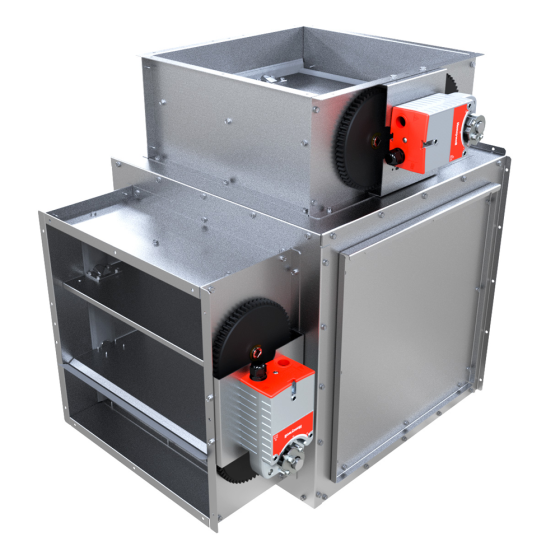

MicroMetl Mixing Box, Genesis Ultra Low Leak with Honeywell JADE™ Controls, Adjustable Dry Bulb, 1,500 - 2,000 CFM
Item
MB-GP20CB-D2DH
SPECIFICATIONS
• CFM Size: 1500-2000 CFM• Leakage Compliance: Ultra Low Leak Genesis
• Certification: AMCA Class 1A Certified
• Frame Gauge: 18
• Blade Gauge: 18
• Control Box Gauge: 20
• Combined Size: 23.50 Inches Wide X 23.50 Inches High X 23.50 Inches Deep With Damper I.D. Dimensions of 18.00 Inches Wide
• Control Type: Fault Detection & Diagnostic Controls
• Controller: Honeywell Jade W7220 Controller
• Energy Module Included: No
• Sensor Type: Adjustable Dry Bulb Sensor
• Actuator Type: Honeywell Actuators
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 72 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 24.000000 | Exterior Dimensions (H) (inches) | 24.000000 | Shipping Weight (lbs) | 72.000000 |
