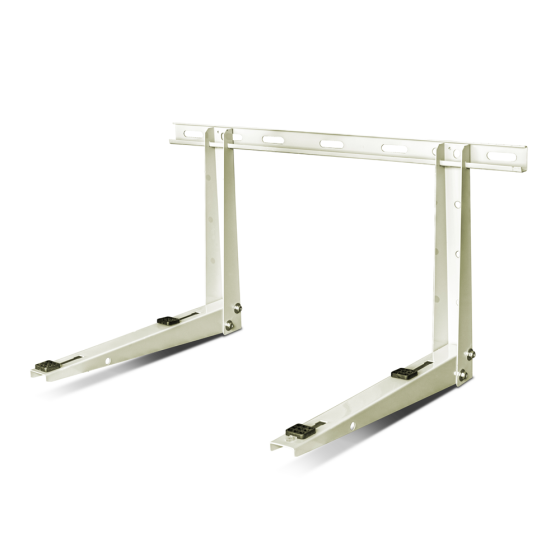

Rectorseal® Mini-Split Wall Condenser Bracket, 300lbs.

APPLICATIONS

This Rectorseal® Mini-Split Wall Condenser Bracket is rated for 300lb. capacity. It is made from heavy duty steel with powder coat finish. The WBB300 features a sliding cross bar for exceptional equipment width range and a level for added convenience.

FEATURES & BENEFITS

• Sheet Gauge: 14 gauge
• Class of Galvanized Sheet: GALVALUME
• Type of Stainless Steel: N/A
• Load Rated Safety Factor: 3
• Testing Load Rating to a Specific Testing Method: Yes
• Seismic Approval: No
• Hurricane Approval: No
• Type of Rubber Used for Isolator: TPE rubber
• UV Resistant: Yes
• Powder Coating: Yes
• Color of Powder Coating: Beige
• Overall Length: 33.50"
• Overall Height: 17.75"
• Overall Depth: 22.25"
• Min/Max Mounting Depth: 10.5" to 16"
• Min/Max Mounting Width: 4.5" to 31"
• Max Load Capacity: 300 lbs

INCLUDES

• 2 x Bracket Arm
• 1 x Crossbar
• 6 x Hex Lag Screw
• 6 x 8 mm Concrete Anchor
• 4 x 1" Bolt and Clip Nut
• 1 x Liquid Level
• 2 x M6*16 Philip Head Screw
• 1 x Installation Instruction
