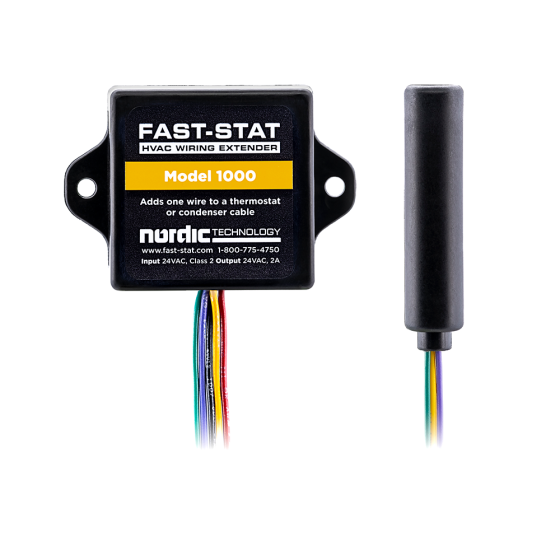

FAST-STAT Model 1000 Wiring Extender 24Vac
Item
MODEL-1000
APPLICATIONS
The Model 1000 provides an additional control wire between a thermostat and indoor unit, or indoor unit and outdoor unit.
FEATURES & BENEFITS
• Compatible with all 24Vac heating and cooling systems.
• Can provide a common connection ‘C’ using a thermostat cable with 3 or more wires. For adding a common with only 2 wires see the FAST-STAT Common Maker.
• Requires a Class 2 transformer providing 23-28VAC.
• The total connected load must not exceed 2 amps.
• The connected load cannot operate at more than 30VAC (not designed for direct connection to 120VAC equipment).
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.800000 | Exterior Dimensions (W) (inches) | 7.600000 | Exterior Dimensions (H) (inches) | 1.600000 | Shipping Weight (lbs) | 5.000000 |
