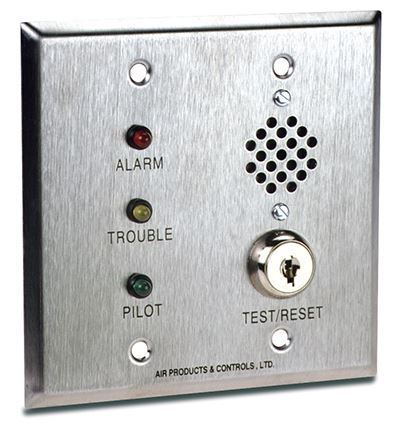

Double Gang Stainless Key Test/Reset w/Horn, Alarm, Pilot
Item
MS-RH-KA-P-A-T-C
Features
- Mounts on a double-gang electrical box
- Provides visual notification of an alarm condition
- Compatible with SL, SM and RT Series Series duct smoke detectors
- Includes key for remote test/reset
The MS Series remote accessories are designed to be used with Air Products & Controls duct smoke detectors to provide audible and visual indication as well as remote test/reset functions. The devices are constructed of attractive yet durable brushed stainless steel and mount on a standard single or double gang electrical box.
Specifications
| Power Requirements | Alarm LED: 15mA @ 24VDC Trouble LED: 15mA @ 24VDC Pilot LED: 15mA @ 24VDC Alarm Horn: 20mA @ 24VDC |
|---|---|
| Sounding Pressure | 78 db @ 10ft |
| Dimensions | Double Gang: 4 1/2" H x 4 1/2" W |
| Wiring | LEDs/Horn: 6" 24 AWG Pigtails Switches: 6" 22 AWG Pigtails |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 1.500000 | Exterior Dimensions (W) (inches) | 4.500000 | Exterior Dimensions (H) (inches) | 4.500000 | Shipping Weight (lbs) | 3.000000 |
