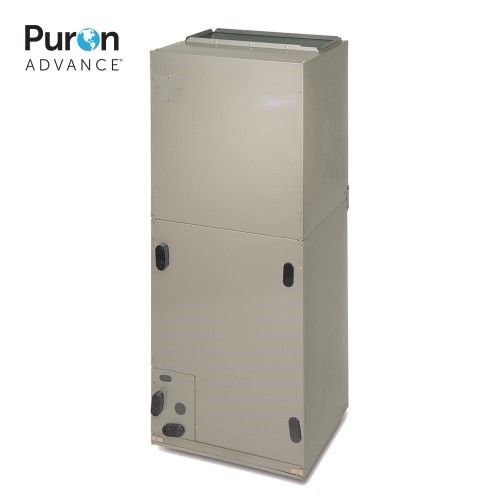

Multipoise Fan Coil, R454B, 5-Speed ECM Motor, 115/1
AIR HANDLER TECHNOLOGY AT ITS FINEST
The F55 fan coil has the proven technology of Carrier fan coil units with Puron Advance™ refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.
Standard features include grooved tubing and louvered fins. Coil circuiting has also been updated to make the most of all Carrier heat
pumps and air conditioners. Units come with solid state fan controls, 1-inch (25mm) thick insulation with R-value of 4.2, multi-speed motors, and fully-wettable coils.
Assembled at the factory compliant with low leak requirements of less than 2% cabinet leakage rate at 0.5 inches W.C. and 1.4% cabinet
leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
The F55 fan coil design is loaded with popular features. These fan coils utilize the latest in electronic commutation motor (ECM) technology through the use of high efficiency, multi-tap ECM motors allowing reliable air delivery with increased static pressure. It comes in a pre-painted (taupe metallic) galvanized steel casing. The unit is shipped
with a Puron Advance™ refrigerant TXV (sizes 18–60).
STANDARD FEATURES
• Refrigerant leak detection dissipation system for added safety.
• Multi-tap ECM (electronic commutating motor) motors – all sizes.
• Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board.
• Five available speed tags to meet a wide range of applications.
• Features when paired with Single stage condensing units:
– Single stage air handler with dehumidification, when paired with a dehumidification capable thermostat.
– Single stage air handler with option to interface with hydronic coil for Aux heat.
– Installer will need to source parts to interface hydronic coil system with R-454B 115V fan coil.
• Features when paired with two stage condensing units and two stage capable thermostat:
– Two stage air handler which will offer better temperature control and performance.
• Large, grooved tube, louvered fin coils.
• Efficient, quiet, time-tested blower housings and diffusers.
• Sturdy, drainable condensate pans.
• Construction innovations designed to prevent cabinet sweating.
• Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements.
• Super-thick R-4.2 insulation with vapor barrier.
• Pre-painted galvanized steel cabinet (taupe metallic).
• Design meets stringent regulations for cabinet air leakage of less than 2% when tested at 0.5 inches W.C., and less than 1.4% at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
• Installation-flexible, multipoise units.
• 2-piece modular design for 42 thru 60 sizes. Facilitates attic and crawlspace installations.
• Horizontal hanging provisions on cabinet.
• Newly improved filter rack area filter door insulation added for improved air seal. No tools required to access filter.
• Entry options for high and low voltage wiring hook-up.
• Leak-preventing sweat connections.
• Thermostatic expansion valve, TXV, on all coils with mechanical fitting connections.
• Straight stub-outs on liquid and vapor service valves for brazeless connection.
• Designed for manufactured housing applications.
LIMITED WARRANTY
• Default 5-year parts limited warranty:
– 10-year parts limited warranty with timely registration*.
Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners, except in jurisdictions where laws dictate otherwise.
See Warranty certificate for complete details and restrictions.
