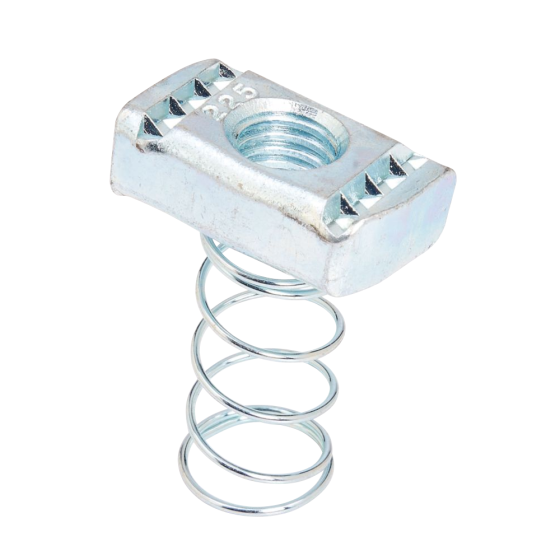

Spring Nut 3/8 in., 16 TPI

Item

N228ZN

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• 0.85"H x 1.8750"L x 1.3750"W
• Steel
• Electro-plated
• 3/8”-16 bolt size
• Load rating (pull out strength): 1100 lbs
• Load rating (slip strength): 800 lbs

Specifications

Specification
Threads Per Inch	16
Thread Size	3/8 in.

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	0.5
Exterior Dimensions (D) (inches)	1.000000
Exterior Dimensions (W) (inches)	1.000000
Exterior Dimensions (H) (inches)	1.000000
Shipping Weight (lbs)	0.500000
