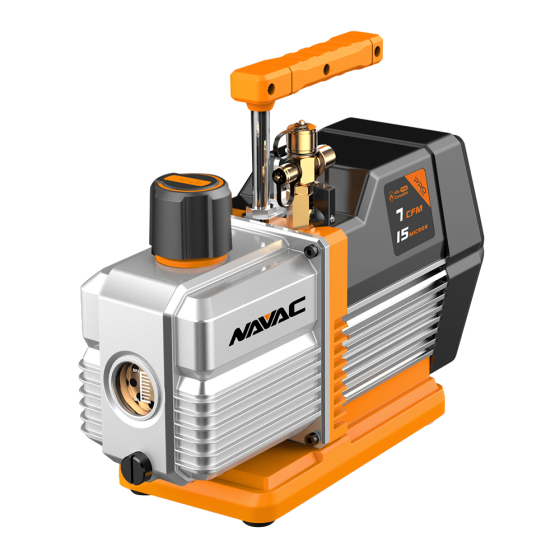

Navac Vacuum Pump 7CFM (A2L Compatible)
Item
NP7DP2
FEATURES
PERFORMANCE & RELIABILITY
NAVAC NP7DP2 is A2L (R32, R454B) compatible vacuum pump with expanded applications. Its dual-stage design delivers an ultimate vacuum down to 15 microns. Integrated cylinder structure coupled with forced oil circulation assure its high performance and reliability. Built-in hook makes it easy to carry to a high workplace.
• Power Supply (V/Hz): 115V/60Hz• Flow Rate (CFM): 7
• RLA (A): 4A
• Ultimate Vacuum (micron): 15
• Pump Design: Dual-Stage, AC Motor
• Motor Power (HP): 3/4
• Inlet Port (in): 1/4″, 3/8″, 1/2″ Flare
• Oil Capacity (oz): 15
• Dimensions (in): 14″x5″x11.3″
• Weight (lbs): 26
• Warranty (year): 1
| Specification | |
|---|---|
| A2L Compatible | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 26 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 26.000000 |
