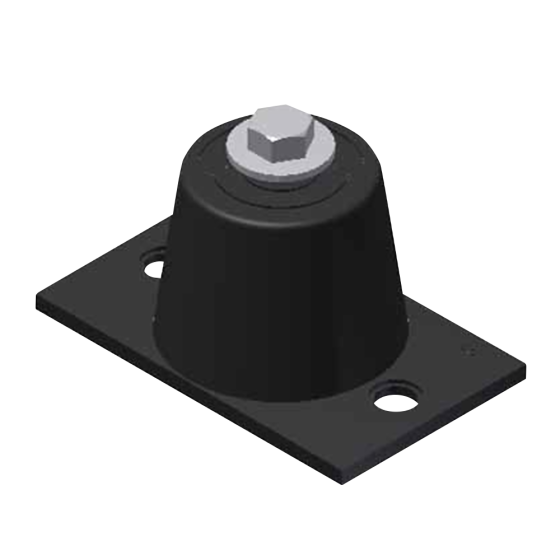

Mason Industries Double Deflection Isolation Mount, 5/16", 0.35" Deflection, 15-45lbs.
Item
NDA-BLACK
APPLICATIONS
The definition of a rubber isolation mounting is any configuration, round, square or rectangular with a known capacity and deflection. Acoustical solutions are in the 6 – 8 Hz frequency range. However, these very same low stress isolators can be stacked with steel shim plates between to achieve lower frequencies for vibration isolation. This grouping is typical of special purpose product. We add new designs in response to market requirements.
FEATURES & BENEFITS
• Rated Capacity (lbs): 15-45
• Maximum Bolt Diameter: 5/16”
• Cap Screw: 5/16"-18 x 3/4"
• Maximum Rated Deflection (in.): 0.35
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 1.250000 | Exterior Dimensions (W) (inches) | 1.630000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 3.000000 |
