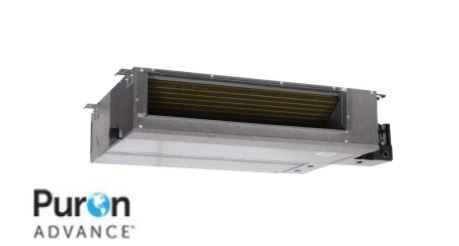

Nominal 1 Ton Ducted Indoor Unit, R454B, High Static, 208/1

Overview

This Performance™ Series ducted indoor unit is an affordable option for those who still want to enjoy energy savings and comfort. This versatile unit is available in both high static and low static options and can be installed in the ceiling, under the floor, or vertically in the wall. This high static ducted indoor unit works with either a single or multi-zone ductless system and offers the convenience of a temperature-sensing handheld remote as well as customized comfort with three available fan speeds.

FEATURES & BENEFITS

Sizes: 06 / 09 / 12 / 18 (Low Static); 09 / 12 / 18 / 24 / 36 / 48 / 58 (High Static)
Available in 208/230V
Modes: Cool, Heat, Dry, Fan, Auto
Vertical (sizes 06-48) or horizontal (All Sizes) installation
Up to 0.8 in WG
Rear or bottom return
Outside air intake
External Condensate Lift Pump Shipped with the unit (Sizes 09-18)
Built-in condensate lift pump (High static units)
Follow Me (senses temperature at handheld remote)
Heating Setback (46° F Heating Mode)
Quiet indoor operation, as low as 22 decibels1
Anti-corrosive fin coating
Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

SPECIFICATIONS

PERFORMANCE

Quiet indoor operation, as low as 22 decibels1

CAPACITIES

0.5 – 4.8 Ton

REQUIREMENTS

208/230V

AESTHETICS

Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.

1 Quietest size within each model group during low fan-speed operation

California residents please see Proposition 65

Specifications

Electrical
Hertz	60
MCA	15
MOCP	3
Phase	1
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	30
Exterior Dimensions (D) (inches)	29.530000
Exterior Dimensions (W) (inches)	27.560000
Exterior Dimensions (H) (inches)	9.650000
Shipping Weight (lbs)	35.000000

General
Tier	Performance - Preferred
