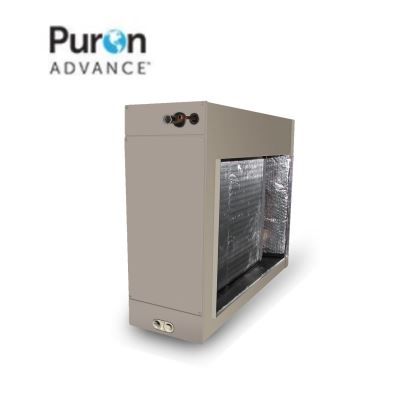

Nominal 2.5 Ton, 12" Wide, Horizontal Slab Evaporator Coil, R454B w/ Refrigerant Detection System
Item
CSAHP3012AMA
Overview
Having an evaporator coil properly matched to your outdoor unit is critical to getting the most out of your air conditioner or heat pump.
Carrier® evaporator coils are designed and manufactured for durability and appropriate system fit to assure you consistent performance year after year.
Having an evaporator coil properly matched to your outdoor unit is critical to getting the most out of your air conditioner or heat pump.
Carrier® evaporator coils are designed and manufactured for durability and appropriate system fit to assure you consistent performance year after year.
FEATURES & BENEFITS
- With Puron Advance™ refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- Includes factory-installed refrigerant leak dissipation systems to meet new UL requirements and to show our commitment to safety.
- Thermostatic Expansion Valve metering device
- Horizontal application
- All aluminum coil for corrosion-resistance
- Cased slab-coil design
- Foil-faced insulation
- Easy coil replacement
- Tapered drain pan
- 10-year parts limited warranty upon registration1
SPECIFICATIONS
PERFORMANCE
Warranty 10-year parts limited warranty upon registration1
TECHNOLOGY
Refrigerant Puron Advance refrigerant
Coil Configuration Slab, Cased
Features Thermostatic Expansion Valve
Cooling Capacity (tons) 1.5 - 5
Installation Horizontal
AESTHETICS
Construction 22 gauge steel cabinet
Paint Taupe metallic
Coil Configuration Slab, Cased
Features Thermostatic Expansion Valve
Cooling Capacity (tons) 1.5 - 5
Installation Horizontal
AESTHETICS
Construction 22 gauge steel cabinet
Paint Taupe metallic
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 50.5 | Exterior Dimensions (D) (inches) | 24.062500 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 28.375000 | Shipping Weight (lbs) | 56.000000 |
