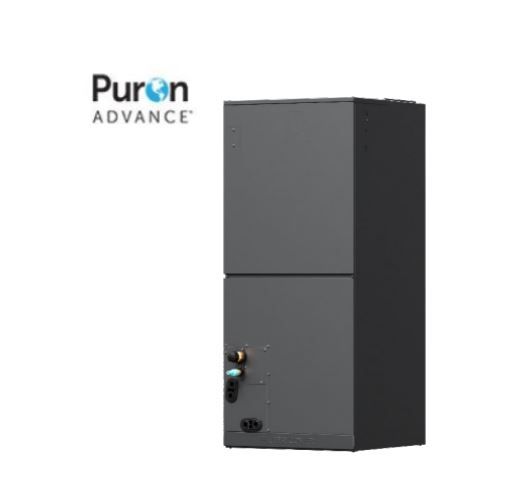

Nominal 2 Ton Multi-Poised R454B Heat Pump Air Handler, 208/1
Item
45MUAAQ24XX3
Overview
Get ready to enjoy the benefits of a crossover system with the 45MUAAQ. Whether you're connecting to a traditional ducted systems or replacing a gas furnace, this unit is right for you. This unit can be installed in four different positions, providing you with a plethora of options for your home. This multi-poise air handler has a variable-speed ECM motor that synchronizes with the Carrier crossover heat pump models 37MURAQ and 37MUHAQ.
FEATURES & BENEFITS
FEATURES & BENEFITS
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Sizes 18k, 24k, 30k, 36k, 48k and 60k
- Total system static pressure up to 0.8 in. W.C.
- Less than 2% air leakage
- Extremely quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 115/208/230V
- Built-in 24V interface
- Conventional line set
- Refrigerant leak detection system
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional electric heat packages available (5 to 25 KW)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
SPECIFICATIONS
EFFICIENCY MANAGEMENT
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on outdoor unit pairing
SOUND
- Quiet Levels As low as 25.5 dB(A)1
COMPATIBLE UNITS
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during low fan-speed operation
1 Quietest size within each model group during low fan-speed operation
California residents please see Proposition 65
| Electrical | |
|---|---|
| Hertz | 60 | MOCP | 15 | Phase | 1 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 106 | Exterior Dimensions (D) (inches) | 17.520000 | Exterior Dimensions (W) (inches) | 21.000000 | Exterior Dimensions (H) (inches) | 45.000000 | Shipping Weight (lbs) | 110.000000 |
| General | |
|---|---|
| Tier | Comfort - Legacy |
