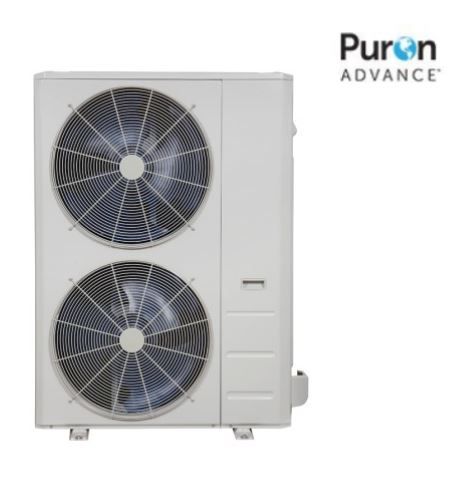

Nominal 5 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1

Overview

We've engineered this compact heat pump with durability, efficiency and your budget in mind. Its small footprint lets you install it as close as six inches from your home. It can alternatively be placed on a roof or stacked for use in multi-family housing. This versatile heat pump is compatible with the 45MUAA fan coil and and Carrier Ductless Crossover Solutions.

FEATURES & BENEFITS

Ultra-compact for small spaces
Enjoy cool summer comfort
Take advantage of efficient electric heating well into the winter months
Sound as low as 59 dB
Enjoy Wi-Fi® remote access capability to allow complete programming and change control from anywhere with the ecobee Smart Thermostat by Bryant
Environmentally-sound Puron® Advance Refrigerant
10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

SPECIFICATIONS

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 19 SEER2/ Up to 12.5 EER2 cooling; up to 10.8 HSPF2

Comfort Management

Cooling operating range -22° – 130° F (-30° – 55° C)
Heating operating range -22° – 86° F (-30° – 30° C)

SOUND

Quiet levels During lowest capacity cooling operating condition: 59 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the ecobee Smart Thermostat by Bryant

TECHNOLOGY

Compressor Variable-speed
Refrigerant Puron® Advance Refrigerant
Controls supported ecobee Smart Thermostat Powered by Bryant
Capacity 1.5-5 tons

AESTHETICS

Design Flow through design has galvanized steel construction, heavy-duty wire fan guard and baked-on powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

California residents please see Proposition 65

Specifications

Electrical
Hertz	60
MCA	40
MOCP	40
Phase	1
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	240
Exterior Dimensions (D) (inches)	16.340000
Exterior Dimensions (W) (inches)	37.480000
Exterior Dimensions (H) (inches)	52.480000
Shipping Weight (lbs)	250.000000

General
Tier	Performance - Preferred
