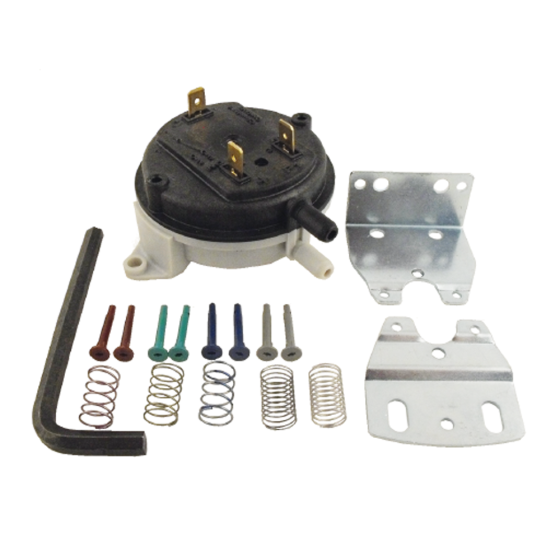

Universal Air Pressure Switch

APPLICATIONS

Universal small footprint air pressure sensing switch that replaces hundreds of small footprint air switches

FEATURES & BENEFITS

• Senses positive, negative or differential pressures
• Hardware kit included
• Set point range: 0.10" to 10.0" W.C.
• 2 Year warranty
• Approvals: UL®, CUL®, CSA®, CE®, Australian Gas Assoc.
• Product Life: 100,000 cycles
• Operating Temperature: -40°F to 190°F (-40°C to 88°C)
• Max Pressure Rating: 14"w.c
• Operating Range: 0.10"w.c to 10.0"w.c

CROSS REFERENCE

• Honeywell® - IS22010051FS5052
