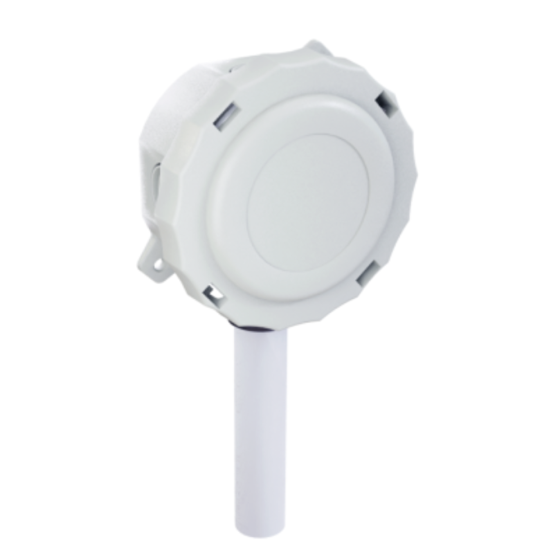

Type II Weatherproof Outside Air Thermistor 10 kΩ, (Euro Enclosure)

FEATURES

The ACI Thermistor Outside Air Series features a weatherproof European Style Plastic enclosure with twist off cover and watertight cord grip fitting. The sensing element contains two, 14 inch 22 AWG Etched PTFE colored lead wires to differentiate the many different sensor types. All sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors as well as to increase the thermal response time using our high quality, thermally conductive epoxy. The outside air sensor is a single point sensor designed to be mounted under an eave or on the North side of a building in a shaded location. The sensing tube pointed must be pointed downward to prevent any water or ice from settling in the sensing tube.

• The ACI Thermistor Outside Air Series is covered by ACI's Five (5) Year Limited Warranty.

SPECIFICATIONS

• Sensor Type | Sensor Curve: Thermistor | Non-Linear, NTC (Negative Temperature Coefficient)
• Number Sensing Points: One
• Number Wires: Two (Non-Polarity Sensitive)
• Sensor Output @25ºC (77ºF): 10KΩ nominal
• Accuracy 0-70ºC (32-158ºF): +/-0.2ºC (+/-0.36ºF)
• Power Dissipation Constant: 3 mW/ºC
• Response Time (63% Step Change): 25 Seconds nominal
• Enclosure Specifications (Temperature, Material, Flammability, NEMA/IP Ratings): PC/ASA Plastic w/ UV Protectant; -40 to 88ºC (-40 to 190ºF); UL94-V0
• Operating Temperature Range: -40 to 70ºC (-22 to 158ºF)
• Storage Temperature Range: -40 to 70ºC (-22 to 158ºF)
• Operating Humidity Range: 10 to 100% RH
• Lead Length | Conductor Size: 14” (35.6cm) | 22 AWG (0.65mm)
• Lead Wire Insulation | Wire Rating: Etched PTFE Colored Leads | MIL-W-16878/4 (Type E)
• Conductor Material: Silver Plated Copper
• Agency Approvals: CE, RoHS2, WEEE
