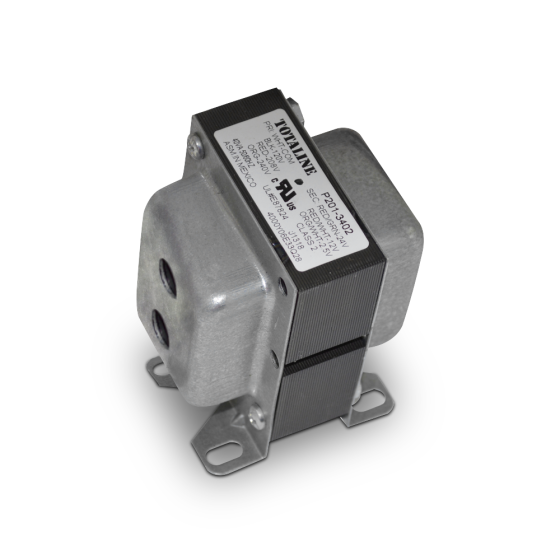

Totaline® Transformer 120/208/240Vac Primary, 2.5/12/24Vac Secondary, 40Va
Item
P2013402
FEATURES & BENEFITS
• Mounting: Foot.• Primary: 120/208/240Vac.
• Secondary: 2.5/12/24Vac.
• Va Rating: 40.
• Hz: 50/60.
• Lead Length: 9".
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Primary Voltage | 120/208/240Vac | Secondary Voltage | 2.5/12/24Vac | Va Rating | 40Va |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.35 | Exterior Dimensions (D) (inches) | 3.600000 | Exterior Dimensions (W) (inches) | 3.800000 | Exterior Dimensions (H) (inches) | 2.100000 | Shipping Weight (lbs) | 3.000000 |
