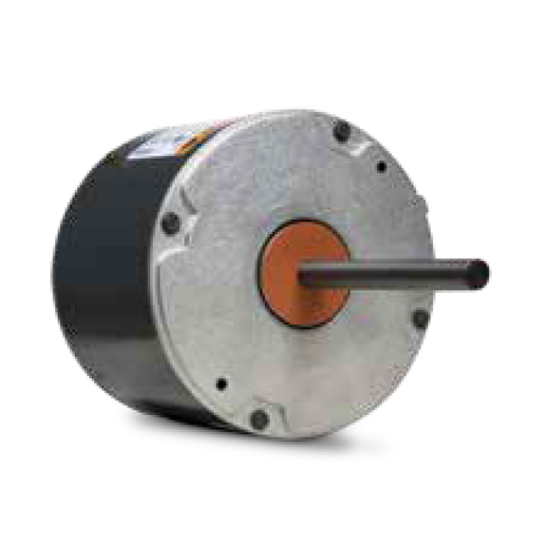

Totaline® Condenser Fan Motor 3/4HP, 1075RPM, 460Vac, 2.0A, 10µF/370Vac, 1 Speed, 70 °C, (PSC)

Item

P257-3739HS

Skip to the beginning of the images gallery

PRODUCT DETAILS

Totaline High Temperature Condenser Fan Motors feature 70°C (158°F) Ambient Design. All angle mounting position for universal versatility.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 460Vac
• Amperage: 2.0
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.0

Specifications

Specification
Ambient Temperature	70 °C
Bearing Type	Ball
Motor Frame	48
Motor HP	3/4
Motor Type	PSC
Number of Speeds	1
RPM	1075
Shaft Diameter	0.50

Electrical
Amps	2
FLA	2
Hertz	60
Voltage	460

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	19.2
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	6.000000
Exterior Dimensions (H) (inches)	5.500000
Shipping Weight (lbs)	23.000000

Warranty
Country of Origin	Mexico
