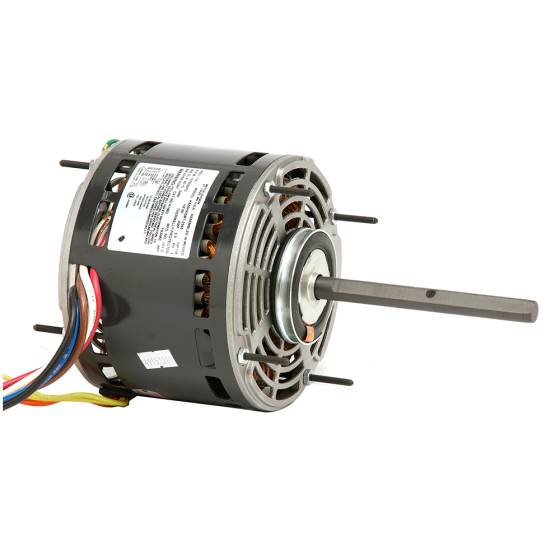

Totaline Direct Drive Blower Motors are three speed standard efficiency, reversible rotation with extended thru bolts and resilient rings for base mounting. These models have open air enclosures and feature shell mounting holes for universal replacement of non-ventilated motors for exhaust, air circulators, unit heaters, unit coolers, and other air-over applications.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC) • Horsepower: 3/4 • RPM: 1075 • Number of Speeds: 3 • Rotation: Reversible • Voltage: 208/230Vac • Amperage: 4.0 • Capacitor: 15µF/370Vac • 1 Phase • Hz: 60 • Bearing Type: Sleeve • NEMA Frame Size: 48 • Open, Air Over (OAO) Enclosure • Continuous Duty • Insulation Class: B • Ambient Temperature: 40 °C • Shaft Size: 0.50 x 4.0
