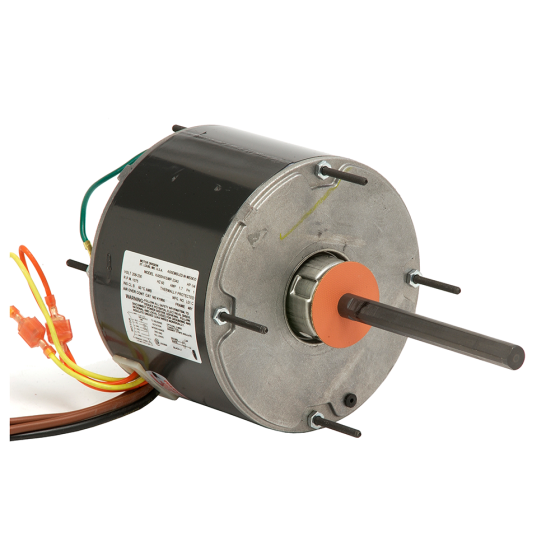

Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft-down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications. Totaline Multi Horse-Power Condenser Fan Motors are ideal for truck stock.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC) • Horsepower: 1/6,1/3 • RPM: 1075 • Number of Speeds: 2 • Rotation: Reversible • Voltage: 208/230Vac • Amperage: 2.6 • Capacitor: 5µF/370Vac • 1 Phase • Hz: 60 • Bearing Type: Ball • NEMA Frame Size: 48 • Totally Enclosed, Air Over (TEAO) Enclosure • Continuous Duty • Insulation Class: B • Ambient Temperature: 60 °C • Shaft Size: 0.50 x 5.0
