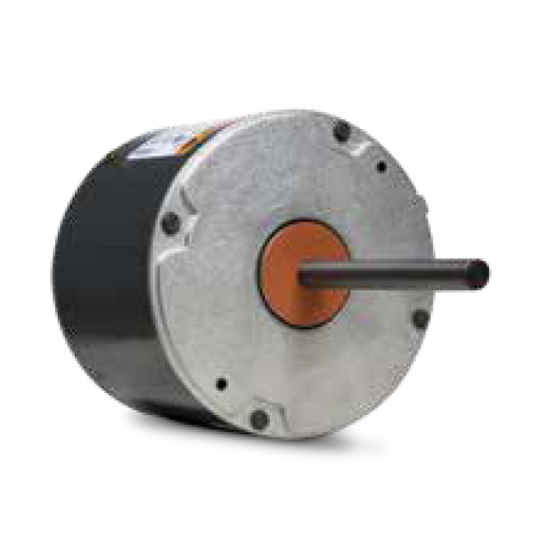

Totaline® Condenser Fan Motor 1/4HP, 1075RPM, 208/230Vac, 1.4A, 5µF/370Vac, 1 Speed, 60 °C, (PSC)
Item
P2578728
PRODUCT DETAILS
Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.4
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 6.0
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/4 | Motor Type | PSC | Number of Speeds | 1 | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 1.4 | FLA | 1.4 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9.9 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 6.300000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 13.000000 |
