Totaline® Smoke Detector, Photoelectric

FEATURES

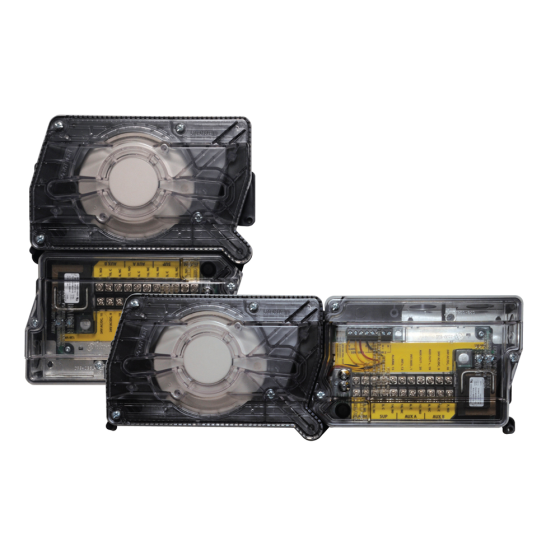

The Totaline® P270-3000PL 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of –4°F to 158°F, and a humidity range of 0 to 95 percent (non-condensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance.

• Photoelectric, integrated low-flow technology

• Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/sec)

• Versatile mounting options: square or rectangular configuration

• Plug-in sensor offers superb false alarm immunity and the latest sensor technology

• Broad ranges for operating temperature (-4°F to 158°F) and humidity (0% to 95% non-condensing)

• Patented sampling tube installs from front or back of the detector with no tools required

• Increased wiring space with a newly added .-inch conduit knockout

• One easy-access Test/Reset button and improved LED status

• System Sensor's patented interconnect feature for multi-fan shutdown.

• New high contrast terminal designations

• Built-in short circuit protection from operator wiring errors.

• Field selectable settings for configuring the detector

• Two DPDT Form-C relay contacts

• 24 VAC/DC or 120VAC.

SPECIFICATIONS

• Temperature Range

○ Operating: –4° to 158°F (–20° to 70°C)

○ Storage: –22° to 158°F (–30° to 70°C)

• Operating Humidity Range: 0% to 95% relative humidity non-condensing

• Air Duct Velocity: 100 to 4000 ft/min (0.5 to 20.32 m/sec)

• Electrical

○ Input capacitance: 270 µF max. 270 µF max. N/A

○ Reset voltage: 3.0 VDC min. 2.0 VAC min. 10 VAC min.

○ Sensitivity Test: 15 sec. 15 sec. 15 sec.

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2.35
Exterior Dimensions (D) (inches)	4.900000
Exterior Dimensions (W) (inches)	2.400000
Exterior Dimensions (H) (inches)	14.200000
Shipping Weight (lbs)	5.000000

Warranty
Country of Origin	Mexico
