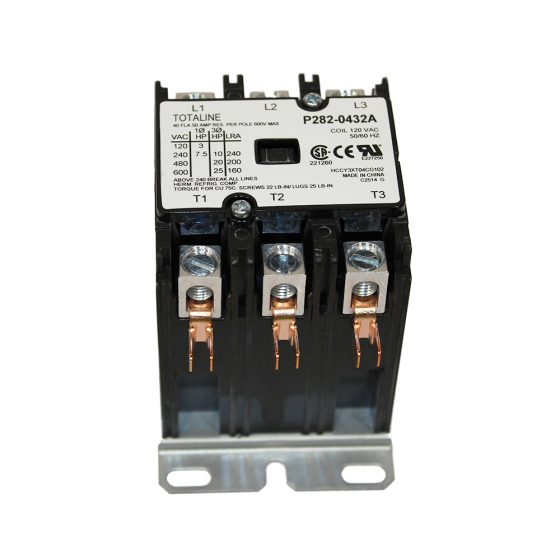

Totaline® Contactor 3 Pole, 120Vac Coil, 40FLA, 50RA, Lug Terminals
Item
P282-0432A
FEATURES & BENEFITS
• 3 Pole.• FLA: 40.
• Resistive Amps: 50.
• Coil Voltage: 120Vac.
• 240LRA @ 240Vac, 200LRA @ 480Vac, 160LRA @ 600Vac.
• Terminal Type: Lugs.
• Insulation: Class B.
• 2 Quick Connections Per Pole.
• Temperature °F: -40 to 150.
• Temperature °C: -40 to 65.
• Silver Cadmium Oxide Contacts.
• UL 508 File NO. E227250.
| Electrical | |
|---|---|
| FLA | 40 | Hertz | 60 | Voltage | 120/240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 120Vac | Poles | 3 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9.5 | Exterior Dimensions (D) (inches) | 2.300000 | Exterior Dimensions (W) (inches) | 3.100000 | Exterior Dimensions (H) (inches) | 2.100000 | Shipping Weight (lbs) | 13.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
