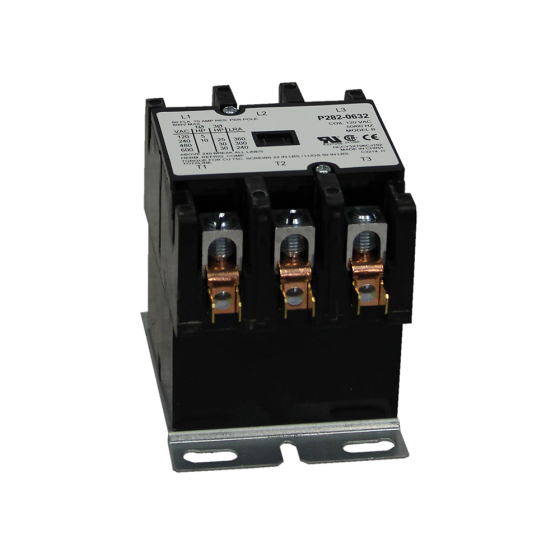

Totaline® Contactor 3 Pole, 120Vac Coil, 60FLA, 75RA, Lug Terminals

Item
P282-0632
  • California Prop 65

FEATURES & BENEFITS

• 3 Pole.
• FLA: 60.
• Resistive Amps: 75.
• Coil Voltage: 120Vac.
• 360LRA @ 240Vac, 300LRA @ 480Vac, 240LRA @ 600Vac.
• Terminal Type: Lugs.
• 2 Quick Connections Per Pole.

Electrical
FLA 60
Hertz 60
Voltage 120/240/480/600
Safety Standards
California Prop 65 Yes
Specification
Coil Voltage 120Vac
Poles 3
Weights and Dimensions
Operating Weight (lbs) 1.411
Exterior Dimensions (D) (inches) 4.500000
Exterior Dimensions (W) (inches) 3.300000
Exterior Dimensions (H) (inches) 3.900000
Shipping Weight (lbs) 3.000000
Warranty
Country of Origin China
