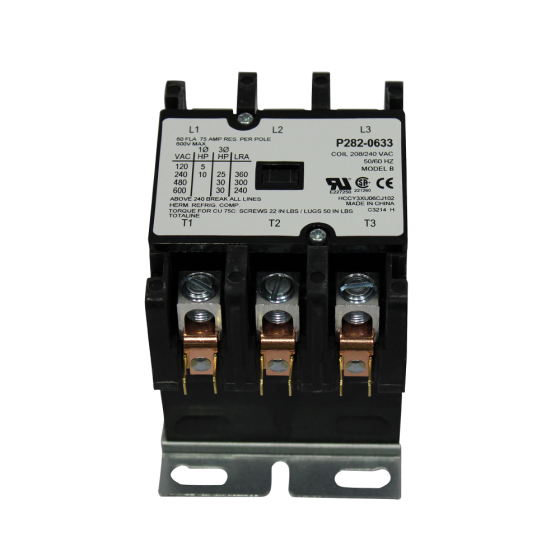

Totaline® Contactor 3 Pole, 208/240Vac Coil, 60FLA, 75RA, Lug Terminals
Item
P282-0633
FEATURES & BENEFITS
• 3 Pole.• FLA: 60.
• Resistive Amps: 75.
• Coil Voltage: 208/240Vac.
• 360LRA @ 240Vac, 300LRA @ 480Vac, 240LRA @ 600Vac.
• Terminal Type: Lugs.
• 2 Quick Connections Per Pole.
| Electrical | |
|---|---|
| FLA | 60 | Hertz | 60 | Voltage | 120/240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 208/240Vac | Poles | 3 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.35 | Exterior Dimensions (D) (inches) | 2.700000 | Exterior Dimensions (W) (inches) | 3.500000 | Exterior Dimensions (H) (inches) | 3.300000 | Shipping Weight (lbs) | 3.000000 |
| Warranty | |
|---|---|
| Country of Origin | Switzerland |
