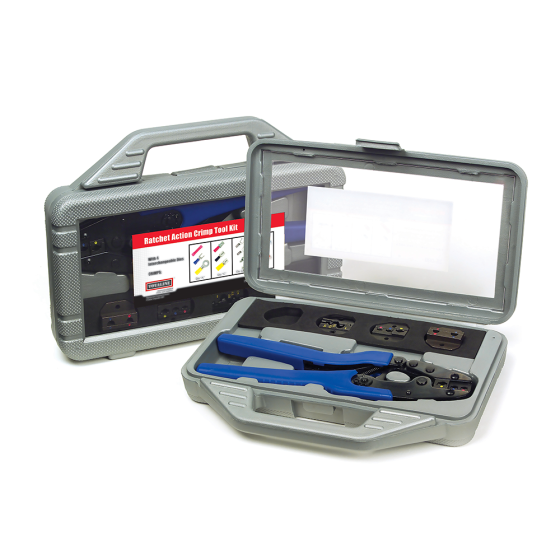

Totaline® Ratchet Action Crimp Tool with 4 Interchangeable Dies

FEATURES

This kit was designed for the professional that insists a high-quality commercial grade full cycle crimp tool. System integrity is maintained when components are terminated with this tool. An ergonomic progressive pivoting design provides maximum crimping force with reasonable hand pressure. The ratcheted design eliminates variability from crimp to crimp. This kit includes four interchangeable dies to crimp a variety of solderless terminals.

• Crimp Die “A” for 22-16 AWG (.33 mm2 to 5.26 mm2) insulated Terminals
• Crimp Die “C” for 22-10 AWG (.33 mm2 to 5.26 mm2) insulated Quick Disconnected Terminals
• Crimp Die “ 22-18/8” for 22-8 AWG (.33 mm2 to 8.36 mm2) uninsulated and high temperature Terminals
• Crimp Die “F” for 22-14 AWG (.33 mm2 to 2.08 mm2) fully insulated flag Terminals
