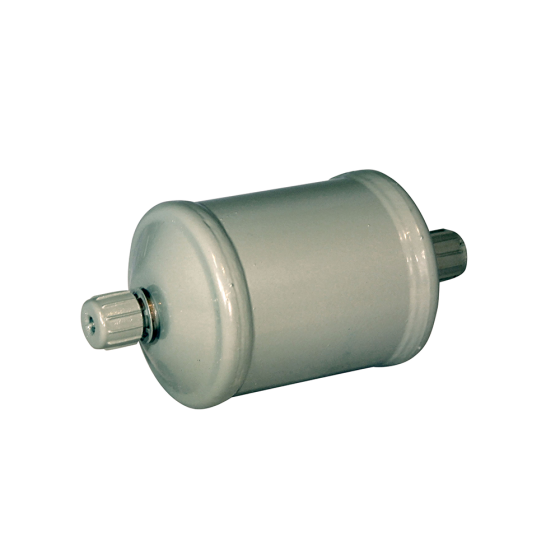

Totaline® Liquid Line Filter Drier 3/8" ODF 8cu. in. (Beaded Core)
Item
P502-8083S
PRODUCT DETAILS
Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration.
Universal Replacement for CFC, HCFC, and HFC Refrigerants.
Filtration first for more effective use of surface area of desiccant.
Solid copper connection for easy installation.
FEATURES & BENEFITS
• Filtration: 20 microns• Maximum working pressure: size 03-75 680 psig
• Desiccant blend – 75% molecular sieve and 25% activated alumina for high moisture and acid capacity
• Desiccant Volume: 8cu. in.
• Connection Inlet Size: 3/8" ODF
• Connection Outlet Size: 3/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.95 | Exterior Dimensions (D) (inches) | 2.100000 | Exterior Dimensions (W) (inches) | 2.300000 | Exterior Dimensions (H) (inches) | 3.800000 | Shipping Weight (lbs) | 3.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
