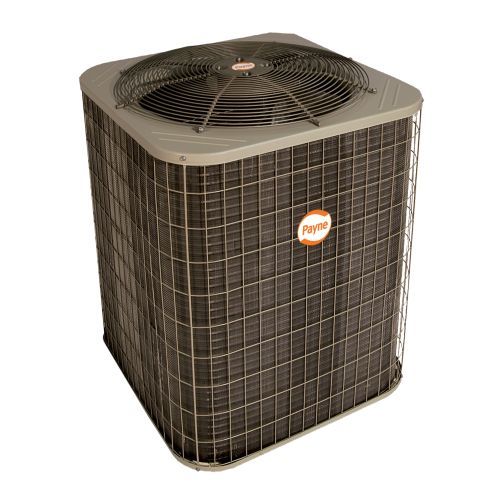

Payne 3.5 Ton, 13.8-15 SEER2 Single Stage, Air Conditioner, 208/1

Features / Benefits

Efficiency

• 13.8 - 16.0 SEER2 (14 - 16.5 SEER) / 11.2 – 13.0 EER2 (11.2 - 13.0EER)
• Indoor air quality accessories available

Reliability

• R-410A refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
• Scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier

Durability

Protection Package:

• Solid, durable sheet metal construction
• Dense wire coil guard

Applications

• Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200

feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)

• Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.

This unit has been designed utilizing R-410A refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.

NOTE: Ratings contained in this document are subject to change at any time.  Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
