Performance™ 96% AFUE Condensing Gas Furnace, Single Stage, 25 Speed ECM

Grouped product items
Product Name
Carrier Performance™ Multipoise Furnace, 96% AFUE, 60,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B060V1716
Carrier Performance™ Multipoise Furnace, 96% AFUE, 40,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B040V1712
Carrier Performance™ Multipoise Furnace, 96% AFUE, 120,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B120V2422
Carrier Performance™ Multipoise Furnace, 96% AFUE, 80,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B080V2120
Carrier Performance™ Multipoise Furnace, 96% AFUE, 100,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B100V2120
Carrier Performance™ Multipoise Furnace, 96% AFUE, 60,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B060V1412
Carrier Performance™ Multipoise Furnace, 96% AFUE, 40,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B040V1410
Carrier Performance™ Multipoise Furnace, 96% AFUE, 80,000 BTU, Single Stage, 25 Speed ECM, 115/1 MFR: Item: 59SP6B080V1716

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

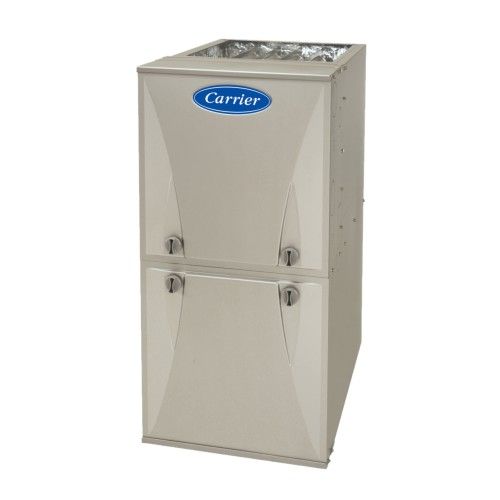

The 59SP6B Multipoise Performance™single-stage Condensing Gas Furnace features a variable 25-speed constant-torque ECM motor to provide a range of airflow options for installation flexibility. This motor is a great match-up for two-stage cooling and allows advanced dehumidification capability when paired with thermostat with dehumidification capability. With an Annual Fuel Utilization Efficiency (AFUE) up to 97% AFUE, this furnace provides exceptional savings when compared to standard gas furnaces. This Performance Gas Furnace also features 4-way multipoise, can be vented for direct vent/two-pipe, ventilated combustion air or single-pipe applications for installation flexibility. All sizes are design certified in Canada. Select sizes can be twinned when using the approved accessory kit.

PERFORMANCE
• Variable 25-speed, constant-torque (VCT) ECM blower motor, and single-stage gas valve.
• Fully-insulated casing including blower section.
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.
• Silicon Nitride Power Heat™ Hot Surface Igniter.
• Adjustable blower speed for heating, cooling, continuous fan, and dehumidification.

• ComfortFan™ technology allows control of continuous fan speed from a compatible thermostat.
INSTALLATION FLEXIBILITY
• 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional through- m,the-cabinet downflow venting capability.
• On-board NFC antenna makes setup a tap away when using the Carrier service technician app.
• Factory-configured ready for upflow applications.
• Installation flexibility: sidewall or vertical vent.
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
• Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.
APPLICATIONS
• Convertible to propane with gas conversion accessory kit.
• Convenient Air Purifier and Humidifier connections.
• Twinning capable with accessory kit on select sizes.
CERTIFICATIONS
• All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95.0%+ AFUE.
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with mASHRAE standard 193.
• All sizes can be installed in air quality management districts with a 40 mng/J NOx emissions requirement.
LIMITED WARRANTY*
• Default 5-year parts limited warranty
• Default 20-year heat exchanger limited warranty - 10-year parts and lifetime heat exchanger limited warranty with mtimely registration*
* Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot mbe conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners.
See Warranty Certificate for complete details and restrictions.
