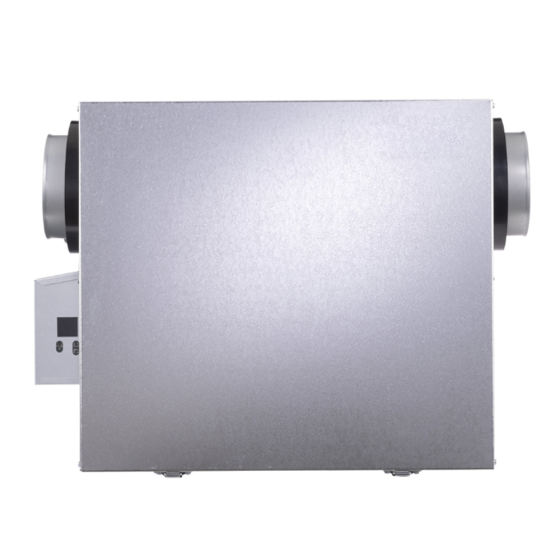

Carrier® Energy Recovery Ventilator 6 in. Round Ducts, 210CFM, 120Vac

FEATURES

Carrier® Energy Recovery Ventilators (ERVs) are designed to minimize energy loss while bringing fresh air into your home and exiting stale air year-round.

Energy recovery ventilators use the outgoing air's thermal energy to pre-condition the air coming in so you can enjoy fresh air without overworking your system.

Energy recovery ventilators are best used in climates where the summer is hot and humid.

• Brings in fresh air and expels stale, sometimes unhealthy air
• Pre-conditions incoming air to minimize energy loss
• Reduces humidity in summer from incoming fresh air
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration
To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

SPECIFICATIONS

EFFICIENCY
Heating Recovery (ASE) Up to 72% at 32 °F
Cooling Recovery (TRE) Up to 52% at 95 °F
ENERGY STAR® Canada qualified
Moisture Transfer Up to 72% at 32 °F

PERFORMANCE
Maximum Airflow 250 cubic feet per minute
Sound Quiet operation

CONVENIENCES
Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY
Core Moisture absorbing, crossflow, enthalpic core
Core Protection Incoming and outgoing air is prefiltered
Compatible Controls Evolution ® or separate ventilator control

INSTALLATION
Placement Wall or ceiling mounted
Venting Horizontal
Electrical 115V

AESTHETICS
Cabinet Taupe color on metal matches Bryant furnace and fan coils
Dimensions 17"H x 39"W x 17.25"D
