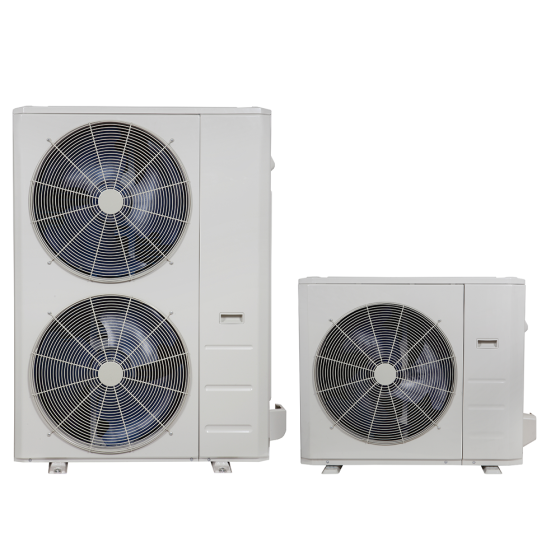

Performance™ Multi-Zone Heat Pump (High Heat)
Ductless Multi-Zone Heat Pump with Basepan Heater
18,000 to 48,000 Btuh
Ductless systems are a matched combination of an outdoor condensing unit and an indoor fan coil unit connected only by refrigerant tubing and wires. As a multi-zone system, you can use up to five multiple style indoor units supported by just this one efficient, outdoor Inverter compressor unit.
Features
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Sizes: 18 / 24 / 30 /36 / 48
- Available in 208/230V
- Built-in Basepan Heater
- Connects two to five multiple style indoor units (Performance™) off a single outdoor unit
- Condenser high temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels1
- Total piping length 131 ~ 328 ft. (40 ~ 100 m) depending on unit capacity
- Compatible indoor units: 40MAQ High Wall, 40MBC Cassette, 40MBD Ducted, 40MBF Floor Console
1Quietest size within each model group during most common cooling operating condition.
