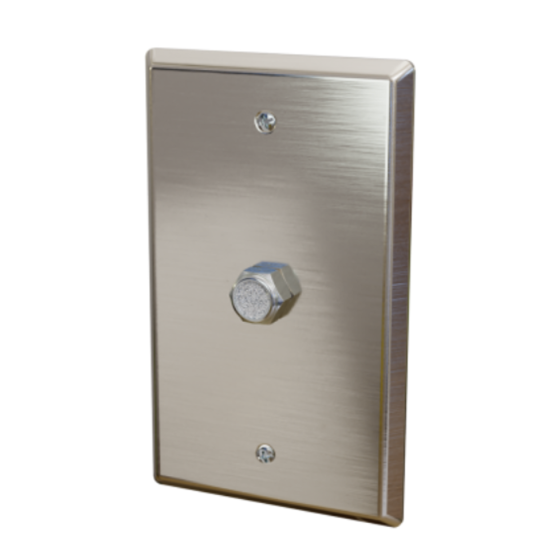

Wall Mounted Stainless Pickup Port

FEATURES

The wall mounted stainless plate pickup ports are designed to be used in conjunction with any low differential pressure transmitter (see ACI DLP or MLP Series) to provide an aesthetically pleasing building static reference point (pressure). When used in conjunction with a low differential pressure transmitter, the pickup ports provide excellent accuracy and reliability.

• The Pick Up Port Series is covered by ACI's Five Year Limited Warranty

SPECIFICATIONS

• Tubing Connections: Barbed fitting accepts 3/16” ID flexible Poly tubing
• Maximum Operating Pressure: Filter: 150 psi (10.3 bar) Medical Tubing (A/10’ Tube, A/20’ Tube, A/100’ Tube): 65 psi maximum at 73ºF (23ºC)
• Operating Temperature Range: -40º to 150ºF (-40º to 66ºC)
• Storage Temperature Range: -40º to 160ºF (-40º to 71ºC)
• Wall Plate Material: 302 Series Stainless Steel
• Wall Plate Color | Finish: Silver (Metallic) | Brushed Stainless Steel
• Foam Material | Flammability Rating: Cross-Linked Polyethylene | FMUSS-302
• Filter Material: Nickel Plated Brass
• Product Dimensions (L x W x D) | Weight: 4.51” (11.5 cm) x 2.76” (7.00 cm) x 0.190” (0.48 cm) | 0.16 lbs (0.073 kg)
• Agency Approvals: RoHS2, WEEE, Reach
