Horizontal Power Exhaust Accessory for Small Rooftop Units 208/230Vac, Single Phase
Item
CRPWREXH028A01
FEATURES
The accessory horizontal power exhaust is used in conjunction with horizontal EconoMi$er IV, EconoMi$er X, or EconoMi$er2 only and is mounted external to the rooftop unit in the return air ductwork. For vertical return air applications, this power exhaust accessory cannot be used. The vertical power exhaust accessory must be used for vertical return air applications.
INCLUDES

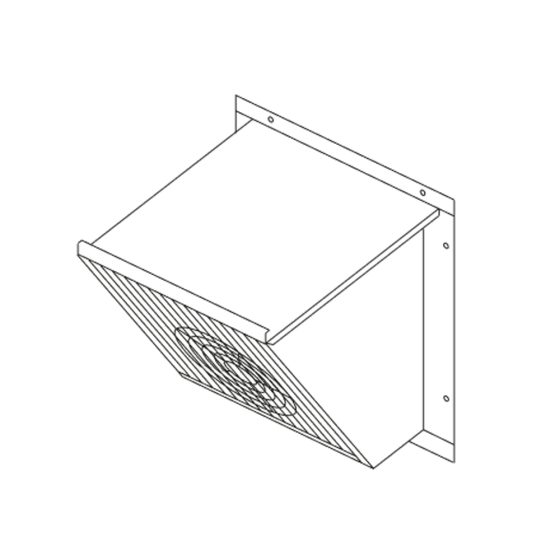

• 1 Power Exhaust Hood/Fan Assembly• 1 Low Voltage Wiring Harness with plug ― 48 in. (1219mm)
• 1 High Voltage Wiring Harness with plug ― 218 in. (5537mm)
• 8 No. 10 x 3/4 in. (19mm) Mounting Screws
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 40 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 22.000000 | Exterior Dimensions (H) (inches) | 25.000000 | Shipping Weight (lbs) | 40.000000 |
