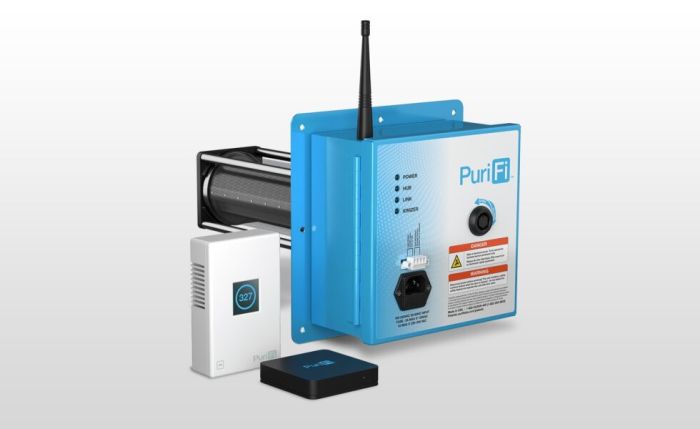

PuriFi Smart Air Purification System 120/220Vac
PURIFI PM SENSOR
PM Sensor detects changes in indoor air quality, activating a response in real-time.
The PuriFi Air Quality Sensor provides real-time feedback to the PuriFi Smart Hub, signaling the patented PuriFi Generator to respond to air quality changes. This laser particle counter has the ability to measure particles down to 0.3 micron in size or 1/118,100″ in diameter.
When the PM Sensor detects that particle levels are too high, based on user-determined thresholds, the Generator is notified, and the system operates until the Sensor verifies that your air is clean and healthy again.
- Proprietary Patented Technology
- Continuously monitors indoor air and responds to changes real-time
- Measures particulates down to 0.3 micron in size or 1/118,100″ in diameter
- 2-Year Limited Warranty
PURIFI SMART HUB
The Smart Hub immediately signals a response to changes in indoor air quality.
When a change in your indoor air quality is detected, the PuriFi Air Quality Sensor notifies the PuriFi Smart Hub, and the patented PuriFi Generator is signaled to respond—all in real-time. The system then operates to destroy the pollutants until the Sensor verifies that your air is clean again. The Smart Hub then signals the Generator to enter standby mode.
The Smart Hub is compatible with popular digital assistants including Amazon Alexa and Google Assistant, as well as standard smart home protocols including Zigbee, Z-Wave, Lutron, LAN, and cloud-connected home automation devices. The Smart Hub is covered by a 2-Year Limited Warranty.
PURIFI GENERATOR
The science of air and surface purification
When particulate levels are too high the PuriFi PM Sensor activates the patented PuriFi Generator. The Generator, which is installed in your central HVAC system, uses our patented process to begin sending an overabundance of natural oxygen ions through all of your air ducts.
Our patented blend of high energy, oxygen ions flood every room and begin the purification process. Every register in your home or business becomes an air and surface purification system.
- Natural ion generating air purification
- Oxidizes tested viruses, bacteria, and household germs*
- Reduces airborne particulates such as PM1, PM2.5, and PM10*
- Patented PuriFi O2 Catalyst reduces unwanted ozone
- Reduced particulate levels are proven with in-room PuriFi laser particle counters
- 5-Year Limited Warranty
- Replacement Core: IAI-020
| PRODUCT SPECIFICATIONS | |
|---|---|
| Physical Dimensions (Maximum) – H x W x D (Body only) | 12 x 8.5 x 14 inches (305 x 216 x 356 mm) – with Antenna 7.3 x 7.5 x 3.8 inches (185 x 191 x 97 mm) |
| Weight including Mounting Bracket | 5.0 pounds (2.3 kg) |
| Housing Material | Aluminum 5052 |
| Mounting Bracket Material | Aluminum 5052 |
| Maximum Ambient Temperature | 200° F (93° C) |
| Maximum Operating Temperature | 150° F (66° C) |
| Input Voltage | 90VAC – 265VAC; 50 or 60 Hz; NEMA 15 Receptacle |
| Input Current Protection | 1A @ 120VAC, 1A @ 220VAC |
| Current Draw | 0.10-0.25 Amps @ 120 VAC |
| Power Consumption (Ionizing Mode) | 14-20 Watts |
| Power Consumption (Ozone Depletion Mode) | 3-5 Watts |
| Effective Area (Volume) | 2500 square feet (20,000 cubic feet) |
| Air Flow Volume (Min–Max) | (2000CFM – 4000CFM) |
| Ionization Plasma Tube | Proprietary (Borosilicate Glass, Stainless Steel, Aluminum) |
| Ozone Control Feature | Limits Ozone (O3) Output to Less Than 0.03 ppm (30 ppb) |
| High Voltage (HV) Transformer Output | 5-7kVAC |
| Safety Features (Access) | Door Interlock Switch, Special Access Key |
| Safety Features (Operation) | Fan Monitoring (RPM), Current Monitoring of HV Transformer |
| Safety Features (Temperature) | Unit will turn off if internal temperature exceeds 150° F (66° C) |
| Wireless Capability | 2.4GHz ZigBee 802.15.4 Standard |
| Electrical | |
|---|---|
| Voltage | 120/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 8.500000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 7.000000 |
| Specification | |
|---|---|
| Produces Ions | Yes | Reduces VOCs | Yes |
