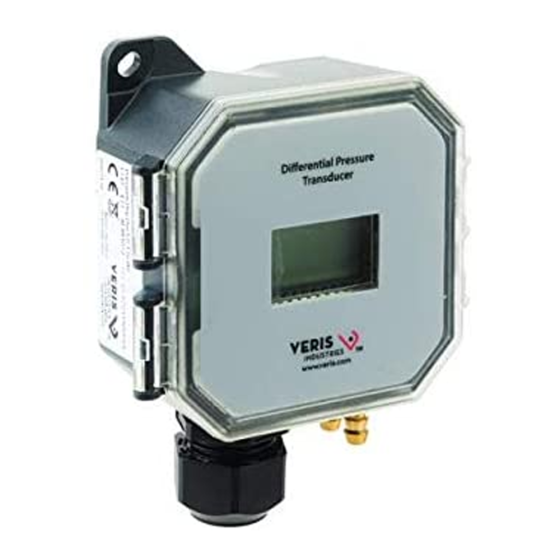

Diff Press Transducer 0-10" WC

APPLICATIONS

Bluetooth Universal Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 0 to 10 in-WG.

Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring.

FEATURES & BENEFITS

• The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The universal model comes in one pressure/velocity range - 0 to 10 in-WG/0 to 7000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
• Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
• High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
• High reliability sensor technology for long-term, maintenance-free operation
• Excellent tolerance to overpressure and vibration reduces field failures
• Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
• Circuit protection avoids damage due to incorrect input wiring
• Universal enclosure
• Uni-directional or bi-directional, DIP switch selectable modes
• Pushbutton auto-zero and digital input (2-position terminal block)
• For indoor or outdoor use
• Burst Pressure: 5 psid (34 500 Pa)
• Calibration Certificate: No
• Dimension Depth: 1.6" (42 mm)
• Dimension Height: 4.4" (112 mm)
• Dimension Probe Diameter: 0.3" (7 mm)
• Dimension Probe Length: 7.4" (188 mm)
• Dimension Weight: 4.4 oz (125 g)
• Dimension Width: 3.5" (88 mm)
• Display Precision: 0.001
• Display Size: 0.7" x 1.1" (17 mm x 28 mm)
• Display Type: LCD
• Electrical Wiring Size: AWG 22 (35 mm²)
• Electrical Wiring: 3-wires
• Enclosure Material: ABS Plastic
• Fitting Material: Brass
• Fitting Size: 0.24" (6 mm)
• Fitting Type: Male
• IP Protection: IP65 (NEMA 4)
• LED Indicator Type: RGB
• Measurement Type: Differential Pressure
• Medium: Air | Gas
• Model: PX3ULX05
• Mounting: Duct | Panel
• Operating Temperature: -4 - 140 °F (-20 - 60 °C)
• Output Specifications: 4 - 20 mA | 0 - 5 V | 0 - 10 V
• Outputs: Analog output
• Pressure Measurement Accuracy: ±1% of F.S.
• Pressure Measurement Range: 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa)
• Product Certification: CE
• Product Type: Sensor
• Range: PX3
• Standards EMC: EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
• Supply Voltage AC Nominal: 24 VAC
• Supply Voltage DC Range: 12 - 30 VDC
