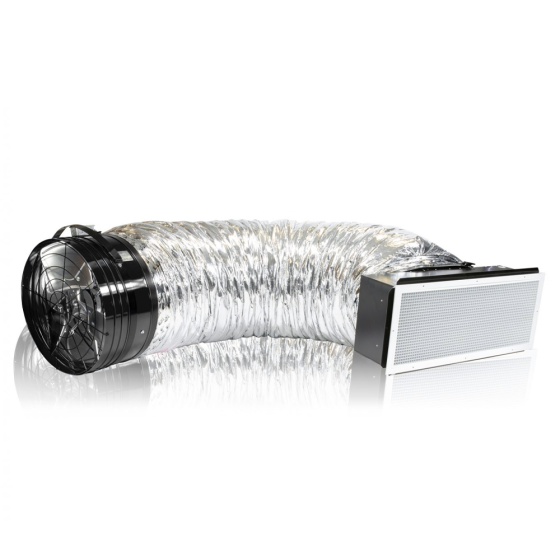

QuietCool® Stealth Pro 7.0X Whole House Fan 4,308 to 6,996CFM, 120Vac (2,332 to 3,498sq ft)

APPLICATIONS

Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, and reliable production, you can utilize an ultra-energy efficient motor to keep your home cool and your money saved.

FEATURES & BENEFITS

• Airflow: Hi: 6,996 CFM / Med: 5,448 CFM / Low: 4,308 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 5,200 CFM / Med: 3,990 CFM / Low: 3,180 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 2,332 SQFT to 3,498 SQFT
• Energy Use: Hi: 725 Watts / Med: 319 Watts / Low: 166 Watts
• Amps: Hi: 8.61 / Med: 4.09 / Low: 2.27
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 3
• dBA: Hi: 51.7 / Med: 45.3 / Low: 41.4
• Minimum Attic Clearance: 44”
• Duct Diameter: 24”
• Duct Length: 9 feet
• Motor Head Diameter: 24 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer & Double 3-way switch (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 9.33 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 36 1/4”
• Removable Grille Outside Dimension: 16” x 38”

INCLUDES

• QC STL PRO7.0X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 9 Foot Duct
• Accessory Bag
• Controls
