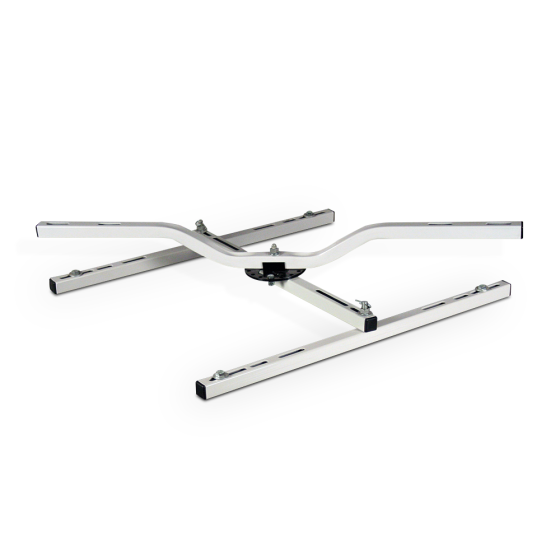

DiversiTech® Quick-Sling® Quick-Swivel Flush Mount with H Bracket (Heaters)
Item
QSWI3000
APPLICATIONS
The Quick-Sling® QSWI3000 Quick Swivel is a flush ceiling mount with H style bracket for unit heaters. Swivel brackets provide fast and easy installation of most all ceiling mounted unit heaters, concealed ducted air handlers and branch controllers. The innovative swivel design allows for 360° rotation for setting the perfect air flow direction prior to hard piping the unit. Multiple ceiling mounting options adapt to various installation applications.
FEATURES & BENEFITS
• Mounts parallel or across joists at 16" or 24" on center
• Allows for 360° unit rotation
• Direct flow of heat for maximum efficiency
• Safely locks into place after installation
• 200 lbs Max Capacity
• Includes all necessary hardware
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 13 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 34.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 13.000000 |
