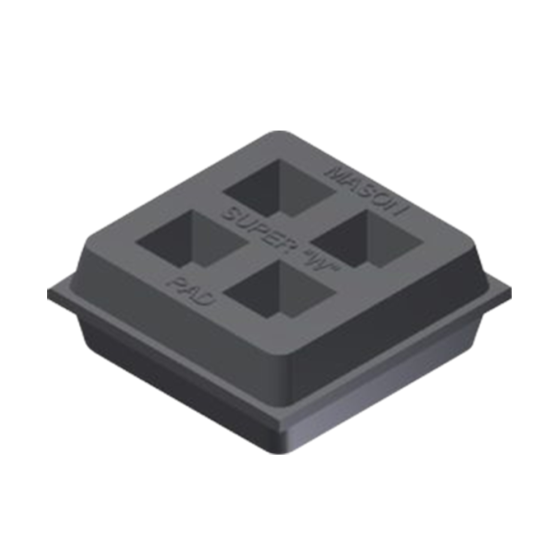

Mason Industries 2x2 Super W Waffle Pad, 2" x 2" x 3/4", 180lbs. per Square

Item
R2X2SW
  • California Prop 65

APPLICATIONS

There are many applications where machines are located in basements or other non-critical areas, where “some” isolation or a noise break is needed, or the use of a resilient friction pad eliminates the need for bolting down. These are the locations where pads are used on a “They serve the purpose” basis. The thickest is always best and Natural Rubber the most efficient.

FEATURES & BENEFITS

• The 2X2 Super W Pad consists of a single 2” (50mm) module. Our Super W pad is one of the most versatile and efficient pads on the market.
• Size (in): 2 x 2
• Duro-meter Standard: 50
• Recommended Maximum Load Deflection (in): 0.113 (15%)
• Recommended Load per 2x2 Square (lbs): 180
• Recommended Load per Area (lbs/in²): 45
• Maximum Load per Area(lbs/in²): 60
• Ship Wt. (lbs): 0.13

Specification
Thickness 3/4 in.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.4
Exterior Dimensions (D) (inches) 3.750000
Exterior Dimensions (W) (inches) 3.750000
Exterior Dimensions (H) (inches) 0.750000
Shipping Weight (lbs) 3.000000
