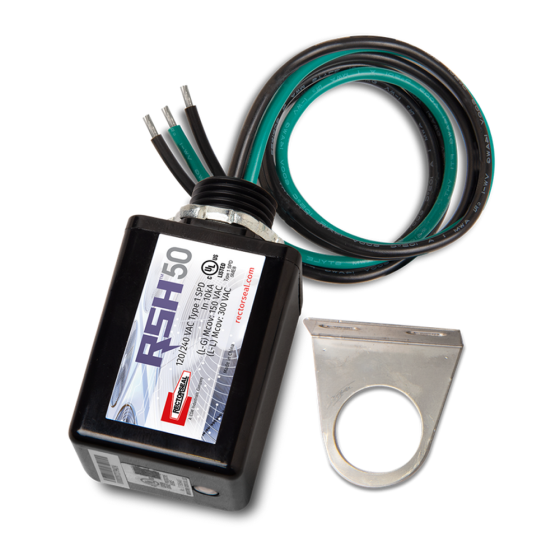

Rectorseal® Surge Protective Device for Single Phase Systems 120/240Vac Type 1
Item
RSH-50
APPLICATIONS
The RSH-50 Surge Protective Device is designed to protect all single phase, 120/240-V air conditioning, heat pumps and ductless mini-split systems (DMSS) from transient over-voltage and natural-cause surges.
FEATURES & BENEFITS
• Long-Lasting Gas Discharge
• Tube Technology
• TFMOV Technology (Thermally Fused Metal Oxide Varistor)
• Limited Lifetime Warranty
• Green LED Easily Indicates Protection
• Weather-Rated under NEMA 4
• Fits All Single-Phase Units
• UL 1449 Listed
• NEC's highest Short Circuit Current Rating (SCCR) @200kA
• RoHS Compliant
• Operating Voltage: 120/240VAC
• Max discharge current per phase: 50kA (1 hit)
• Normal discharge current: 10kA (15 hits)
• Short circuit current: 200kA
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
