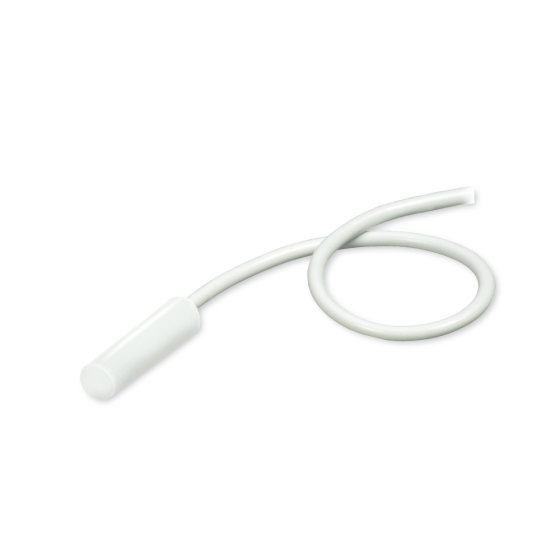

Braeburn® Wired Remote Outdoor Sensor
Item
5490B
FEATURES
The Braeburn 5490 Remote Outdoor Sensor senses the outdoor air temperature and transmits the information to a compatible Braeburn thermostat. When the 5490 sensor has been installed, the thermostat can display the outdoor temperature, limit the heat pump system, and automatically limit humidification settings.
• Mounts outdoors up to 200 feet away• Enables outdoor control functions
• Sense range of -40˚ to 120˚F
SPECIFICATIONS
• Accuracy: +/- 1˚F (.5˚C)• Storage Temperature: 14˚ to 140˚ (-10 to 60˚C)
• Operating Humidity: 5% to 95% Relative Humidity
• Dimensions: 1.25” x .25” w/60” 2-wire cable
• Unit Weight: .10 Lbs.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.100000 |
