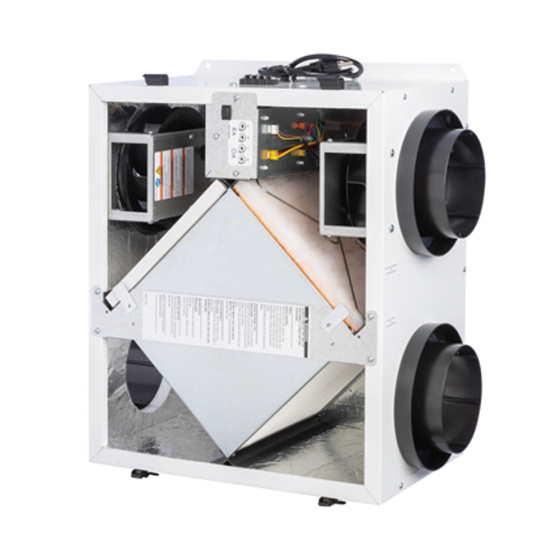

Ideal for single- and multi-family structures, as well as light-commercial buildings, this EV Series Premium ERV incorporates a high-efficiency EC-motor fan to meet strict California energy codes. The EV Series Premium ERV also includes a new Dial-A-Flow controller that allows users to set airflow for maximizing comfort. In addition, this ERV has boost-mode capabilities with MERV 13 filters as an accessory to further enhance IAQ.
CERTIFICATION
• Commercial Units
○ Certified by the Air Conditioning, Heating and Refrigeration Institute (AHRI) for an industry-leading, low-to-zero Exhaust Air Transfer Ratio (EATR) at typical static pressure differential.
• Residential Units
○ Certified by the Home Ventilating Institute (HVI) against standard CAN/CSA-C439-18 for an industry leading CFM/watt and energy transfer effectiveness (except BR 70).
• Superior core flammability performance; passes UL-723 and UL-1812.
MAINTENANCE
• RenewAire cores are easy to clean without removing them from the unit, and they never require washing.
INNOVATIVE CONSTRUCTION
• Core exchanger material is cellulosic-based and doesn’t contain or use halogenated flame retardants or PVCs.
• Manufactured with a galvanized steel frame.
RELIABILITY
• An industry-leading 10-year structural and performance warranty for the static-plate core, two-year warranty for commercial products and five-year warranty for residential products.
EXCEPTIONAL PERFORMANCE
• Moderates heat and humidity via total energy recovery to maintain a comfortable indoor environment.
• No need for frost protection or condensate pans Laminar airflow ensures that particulates do not accumulate in the core.
REDUCED COSTS
• Optimized energy efficiency via core energy transfer decreases ventilation energy requirements, which can result in smaller air conditioning and heating needs.
SPECIFICATIONS
• Ventilation Type: Static plate, heat and humidity transfer
• Typical Airflow Range: 30–225 CFM
• Unit is HVI Tested/Certified per CSA C439 Protocol: Using one L-50-G5 Core
• White painted cabinet
• Line-cord power supply or hard wired to junction box (H)
• Low-voltage circuit for controls
• Unit may be mounted in any orientation
• Cross-core differential pressure ports
• Dial-A-Flow: balance and airflow adjustment
• Variable speed
• Boost-mode
• Controls: Onboard digital controller with independent variable speeds
• Filters: Total qty. 2, MERV 8, spun-polyester media: 10 1/2" x 10 1/2" x 1"
