APPLICATIONS

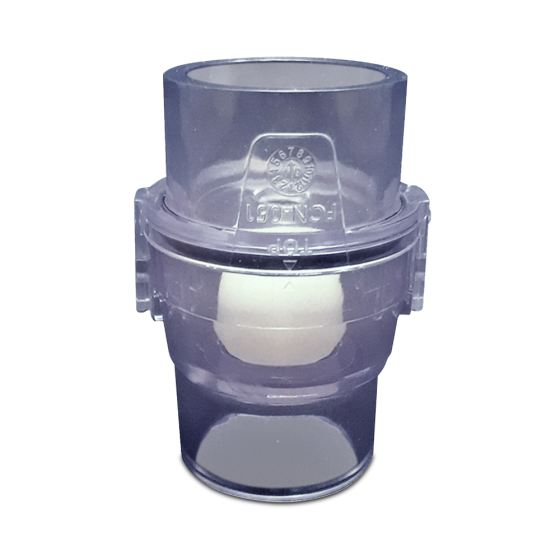

The FCN-HVAC Air-Trap™ is used in residential or light commercial applications. It allows liquid condensate to drain from HVAC equipment and simultaneously prevents air from entering or escaping from the equipment. The FCN also eliminates the geyser effect caused when a standard P-Trap dries out and condensate begins to form. The FCN waterless trap requires less than half the height of a standard P-Trap and operates dry except when condensate is being produced.
FEATURES & BENEFITS
• Condensate flow up to 1 GPM @ 2"
• For use on HVAC equipment ONLY
• Meets general building codes
• Not for use as a sanitary trap
• Retains no water after condensing ceases
• Schedule 40 PVC, with easy open side clips for cleaning
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
