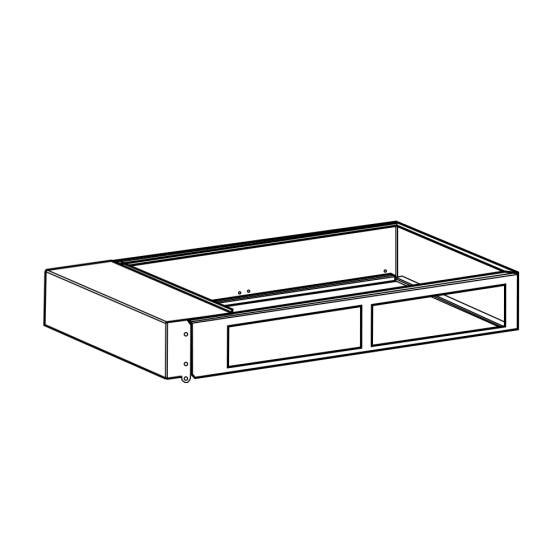

Return Air Base for 14" Wide Furnaces (Upflow)
Item
KGARP0301B14
FEATURES
The KGARP Return Air Kit is for use in 35-in. (889 mm) tall condensing gas furnaces and 33 1/3-in. (847 mm) tall mid-efficiency furnaces. The base is matched to specific furnace cabinet widths. The base can be used to provide side and bottom return air connections to any furnace installed in the upflow position without requiring a floor penetration. The 21 and 24 base is also used to mount a 20-in. (508 mm) or 24-in. (610 mm) media cabinet to the side of a 21-in. (533 mm) or 24 1/2--in. (622 mm) wide furnace without the use of a transition.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15 | Exterior Dimensions (D) (inches) | 30.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 15.000000 |
