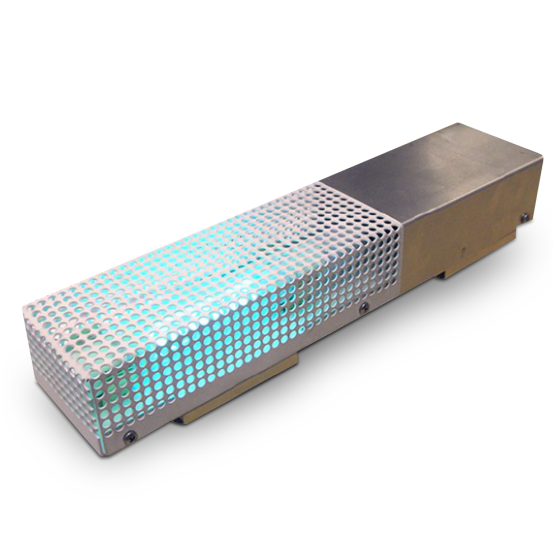

RFG Commercial Air Purification System 24V, 3,000 - 8,000 CFM

APPLICATIONS

The PHI-PKG® Commercial Air Purification System can be installed anywhere there is a ducted HVAC system. It is suitable for commercial HVAC applications.

Reducing Odors – If your workplace smells like chemicals, food or mold, our system is designed to reduce those odors.

Help prevent the spread of bacteria and viruses – Everyone is more careful about viruses and bacteria today. Clean the air in your workplace with our revolutionary system. PHI-PKG® reduces the spread of pathogens in the air throughout your workplace.

Toxins and Pollutants – With the multitude of pollutants that can spread throughout your indoor air, you need an active process to combat them. PHI-PKG® is designed to reduce these pollutants from the air we breathe every day.

Office and Workplace Applications – Offices, hospitals, schools, fitness centers, assisted living facilities, warehouses, restaurants, and other places where large numbers of people congregate use our system to clean the indoor air for their employees and guests. Studies have shown that better air quality reduces absenteeism from work due to illness. They have also been linked to higher productivity.

FEATURES

With PHI-PKG® you can protect your family and help protect the environment at the same time.

The PHI-PKG® active air purification solution disperses airborne gaseous hydrogen peroxide throughout your air conditioning system and into the building, reducing viruses, bacteria, mold spores and odors at the source.

It operates silently and continuously, so once it’s installed, the only thing you’ll notice is how fresh your workplace smells – and how comforting it is to help protect everyone around you.
• Installation is quick and easy
• One of the least expensive components of an air conditioning system, but one that can have one of the biggest impacts on your air quality.
• Active technology reduces viruses, bacteria, mold spores and odors right at the source to give you the freshest air possible.
• Can be easily integrated into any existing air conditioning duct system.
• Reduces common odors associated with any workplace.
• Silent, continuous operation so you only notice how fresh your space is.

SPECIFICATIONS

• Technology: PHI-CELL® RGF Proprietary Catalyst and UVC Lamp
• HVAC Blower Size: 3,000 to 8,000 CFM
• Tonnage: 7.5 and 20 ton
• Dimensions: 2.25″W x 18.5”L x 1.75”D
• Ship Wt.: 2 lb.
• Replacement Cell Part #: PHIC-14PKG
• Recommended Cell Replacement: 18,000 – 25,000 hrs.
• Volts: 24 VAC
• Amps: 0.48 A
• Watts: 11 W
• Installation: Air handler cabinet / magnetic mount
• Material: Aluminum
• Warranty: 2 years ballast / 2 years cell (U.S. only)
• Hydro-Peroxides: <.02 PPM
