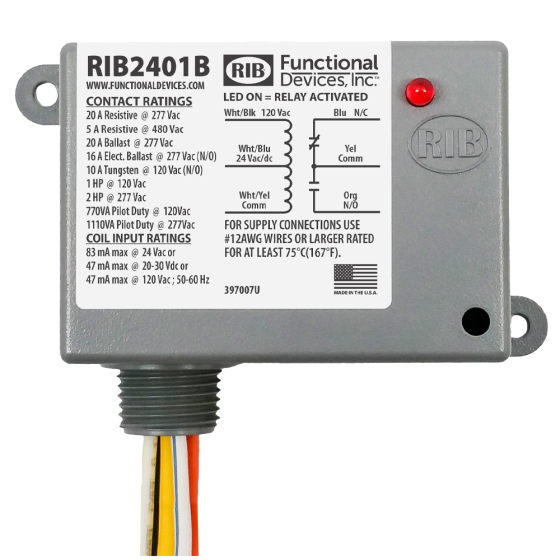

Enclosed Relay SPDT, 20A, 24V/120Vac

FEATURES & BENEFITS

• # Relays & Contact Type: One (1) SPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 18ms
• Relay Status: LED On = Activated
• Wires: 16 ̋, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1

Contact Ratings:

• 20 Amp Resistive @ 277 Vac
• 5 Amp Resistive @ 480 Vac
• 20 Amp Ballast @ 277 Vac
• 16 Amp Electronic Ballast @ 277 Vac (N/O)
• 10 Amp Tungsten @ 120 Vac (N/O)
• 770 VA Pilot Duty @ 120 Vac
• 1,110 VA Pilot Duty @ 277 Vac
• 2 HP @ 277 Vac
• 1 HP @ 120 Vac

Coil Current:

• 50 mA @ 18 Vac
• 83 mA @ 24 Vac
• 47 mA @ 120 Vac
• 33 mA @ 22 Vdc
• 35 mA @ 24 Vdc
• 47 mA @ 30 Vdc

Coil Voltage Input:

• 24 Vac/dc ; 120 Vac ; 50-60 Hz
• Drop Out = 2.1 Vac / 3.8 Vdc
• Pull In = 18 Vac / 22 Vdc
